2381-0-00-15-00-00-33-0

2381-0-00-15-00-00-33-0
Manufacturer Part Number:2381-0-00-15-00-00-33-0
Manufacturer:
Product Category:Terminals - PC Pin, Single Post Connectors
Available Quantity:16399 Pieces
Unit Price:Quote by Email

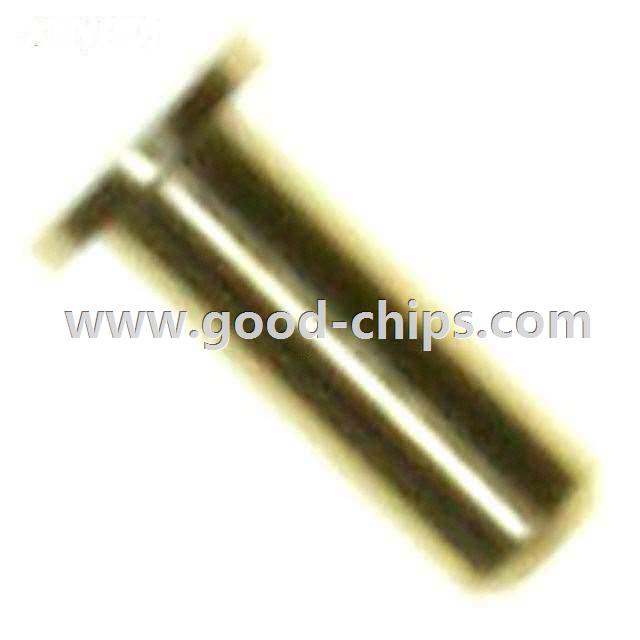

Description:PC Pin Terminal Connector Through Hole Gold 0.050" (1.27mm) Dia
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 2381-0-00-15-00-00-33-0 Datasheet
2381-0-00-15-00-00-33-0´s Parameters
Internal Part Number898-2381-0-00-15-00-00-33-0
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog Nail Head Type
CategoryConnectors, Interconnects
FamilyTerminals - PC Pin, Single Post Connectors
ManufacturerMill-Max Manufacturing Corp.
Series2381
PackagingBulk
Part StatusActive
Terminal TypePC Pin
Terminal StyleSingle End, Nail Head
Pin Size - Above Flange0.050" (1.27mm) Dia
Pin Size - Below Flange-
Length Above Flange0.145" (3.68mm)
Length Below Flange-
Length - Overall0.155" (3.94mm)
Flange Diameter0.080" (2.03mm)
Mounting Hole Diameter0.054" (1.37mm)
Mounting TypeThrough Hole
TerminationSolder
InsulationNon-Insulated
Board Thickness-
Contact MaterialBrass Alloy
Contact FinishGold
Contact Finish Thickness10µin (0.25µm)
Material - Insulation-
Insulation Color-
Standard Package 500
Weight0.001 KG
ApplicationEmail for details
Replacement Part2381-0-00-15-00-00-33-0
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

2381-0-00-15-00-00-33-0 is in stock for immediate shipping now. We are the distributor of Mill-Max Manufacturing Corp. all series components. The condition of 2381-0-00-15-00-00-33-0 is new and unused, you can buy 2381-0-00-15-00-00-33-0 Mill-Max Manufacturing Corp. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 2381-0-00-15-00-00-33-0.
