Manufacturer Part Number: | 232-1285-00-0602J |
---|---|
Manufacturer: | 3M |
Product Category: | Sockets for ICs, Transistors |
Available Quantity: | 9138 Pieces |
Unit Price: | Quote by Email |

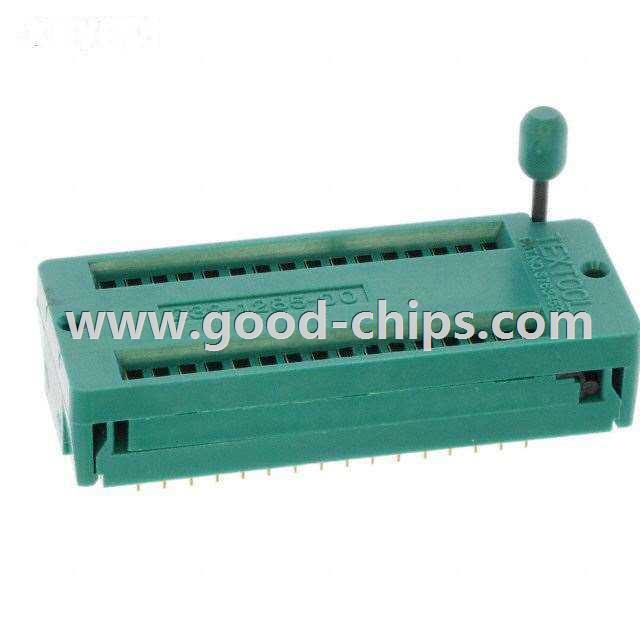

Description: | CONN IC DIP SOCKET ZIF 32POS GLD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 232-1285-00-0602J Datasheet |
Internal Part Number | 898-232-1285-00-0602J | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Textool Sockets | |
Featured Product | 3M™ ZIP DIP Sockets | |
Online Catalog | Textool™ Series | |
Category | Connectors, Interconnects | |
Family | Sockets for ICs, Transistors | |
Manufacturer | 3M | |
Series | Textool™ | |
Packaging | Bulk | |
Part Status | Active | |
Type | DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing | |
Number of Positions or Pins (Grid) | 32 (2 x 16) | |
Pitch - Mating | 0.100" (2.54mm) | |
Contact Finish - Mating | Gold | |
Contact Finish Thickness - Mating | 30µin (0.76µm) | |
Contact Material - Mating | Beryllium Copper | |
Mounting Type | Connector | |
Features | Closed Frame | |
Termination | Press-Fit | |
Pitch - Post | 0.100" (2.54mm) | |
Contact Finish - Post | Gold | |
Contact Finish Thickness - Post | 30µin (0.76µm) | |
Contact Material - Post | Beryllium Copper | |
Housing Material | Polysulfone (PSU), Glass Filled | |
Operating Temperature | -55°C ~ 125°C | |
Termination Post Length | 0.110" (2.78mm) | |
Material Flammability Rating | UL94 V-0 | |
Current Rating | 1A | |
Contact Resistance | - | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 232-1285-00-0602J | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
232-1285-00-0602J is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 232-1285-00-0602J is new and unused, you can buy 232-1285-00-0602J 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 232-1285-00-0602J.
