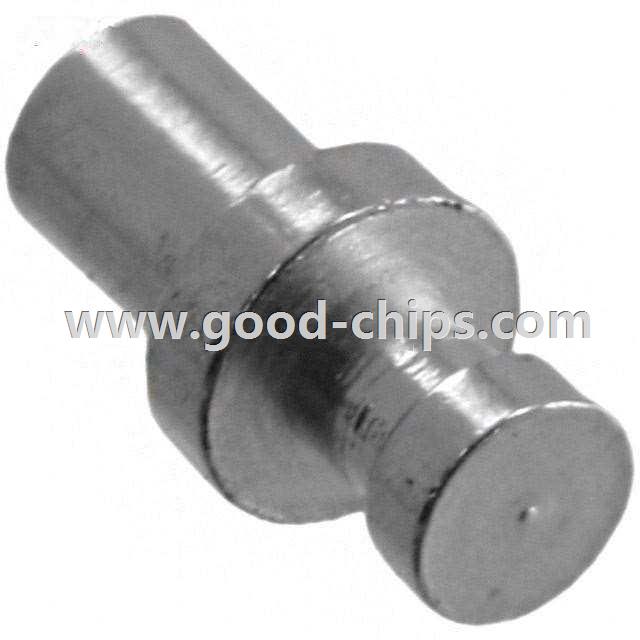

| Manufacturer Part Number: | 2301-2-00-44-00-00-07-0 |
|---|---|
| Manufacturer: | Mill-Max Manufacturing Corp. |
| Product Category: | Terminals - Turret Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Terminal Turret Connector Single End 0.093" (2.36mm) Silver |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 2301-2-00-44-00-00-07-0 Datasheet |
| Internal Part Number | 898-2301-2-00-44-00-00-07-0 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Turret Connectors | |
| Manufacturer | Mill-Max Manufacturing Corp. | |
| Series | 2301 | |
| Part Status | Active | |
| Terminal Type | Single End | |
| Number of Turrets | Single | |
| Length - Above Board | 0.093" (2.36mm) | |
| Length - Below Flange | 0.084" (2.13mm) | |
| Length - Overall | 0.177" (4.50mm) | |
| Mounting Type | Through Hole | |
| Termination | Swage | |
| Flange Diameter | 0.094" (2.39mm) | |
| Diameter - Turret Head | 0.063" (1.60mm) | |
| Staking Side OD | 0.062" (1.57mm) | |
| Staking Side ID | 0.046" (1.17mm) | |
| Mounting Hole Diameter | 0.067" (1.70mm) | |
| Board Thickness | 0.062" (1.57mm) | |
| Contact Material | Brass Alloy | |
| Contact Finish | Silver | |
| Contact Finish Thickness | 300µin (7.62µm) | |
| Insulation | Non-Insulated | |
| Material - Insulation | - | |
| Insulation Color | - | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 2301-2-00-44-00-00-07-0 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
2301-2-00-44-00-00-07-0 is in stock for immediate shipping now. We are the distributor of Mill-Max Manufacturing Corp. all series components. The condition of 2301-2-00-44-00-00-07-0 is new and unused, you can buy 2301-2-00-44-00-00-07-0 Mill-Max Manufacturing Corp. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2301-2-00-44-00-00-07-0.
