Manufacturer Part Number: | 229D56 |
---|---|
Manufacturer: | Hammond Manufacturing |
Product Category: | Power Transformers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

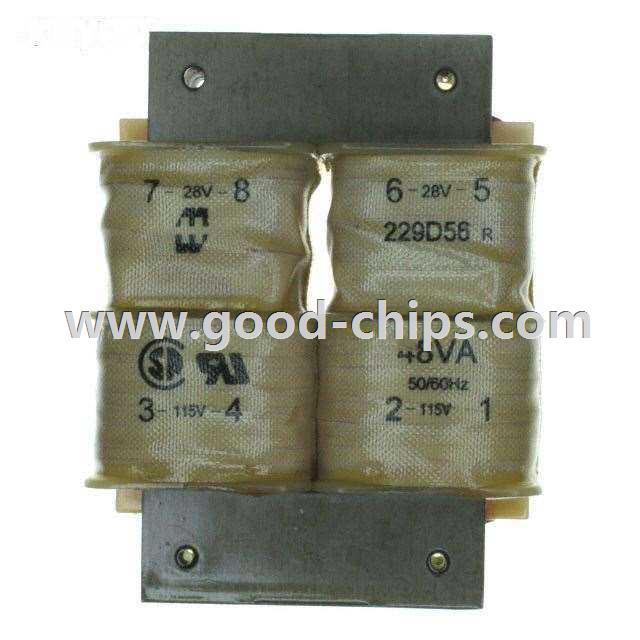

Description: | XFRMR SEMI-TORO 48VA THRU HOLE |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 229D56 Datasheet |
Internal Part Number | 898-229D56 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Transformers | |
Family | Power Transformers | |
Manufacturer | Hammond Manufacturing | |
Series | 229 | |
Part Status | Active | |
Type | Semi-Toroidal | |
Voltage - Primary | 115V, 230V | |
Voltage - Secondary (Full Load) | Parallel 28V, Series 56V | |
Current - Output (Max) | Parallel 1.7A, Series 850mA | |
Primary Winding(s) | Dual | |
Secondary Winding(s) | Dual | |
Center Tap | No | |
Power - Max | 48 VA | |
Mounting Type | Through Hole | |
Termination Style | PC Pin | |
Size / Dimension | 63.50mm L x 79.25mm W | |
Height - Seated (Max) | 35.05mm | |
Voltage - Isolation | 1750Vrms | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 229D56 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
229D56 is in stock for immediate shipping now. We are the distributor of Hammond Manufacturing all series components. The condition of 229D56 is new and unused, you can buy 229D56 Hammond Manufacturing with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 229D56.
