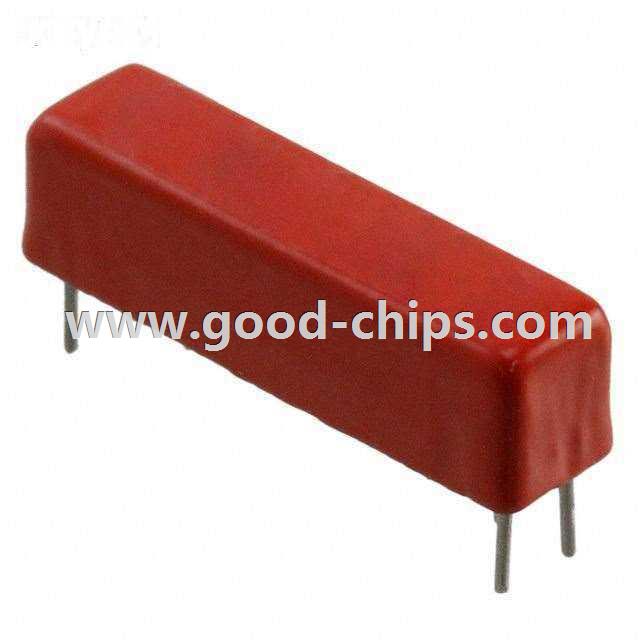

Manufacturer Part Number: | 2271-05-001 |
---|---|
Manufacturer: | Coto Technology |
Product Category: | Signal Relays, Up to 2 Amps |
Available Quantity: | 9320 Pieces |
Unit Price: | Quote by Email |
Description: | Reed Relay SPDT (1 Form C) Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 2271-05-001 Datasheet |
Internal Part Number | 898-2271-05-001 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Mfg Application Notes | Reed Relays Technical, Appl Into | |
Online Catalog | 2270 Series | |
Category | Relays | |
Family | Signal Relays, Up to 2 Amps | |
Manufacturer | Coto Technology | |
Series | 2270 | |
Packaging | Tube | |
Part Status | Active | |
Relay Type | Reed | |
Coil Type | Non Latching | |
Coil Current | 50mA | |
Coil Voltage | 5VDC | |
Contact Form | SPDT (1 Form C) | |
Contact Rating (Current) | 250mA | |
Switching Voltage | 100VAC, 100VDC - Max | |
Turn On Voltage (Max) | 2.5 VDC | |
Turn Off Voltage (Min) | 0.4 VDC | |
Operate Time | 1ms | |
Release Time | 2ms | |
Features | Sealed - Hermetically | |
Mounting Type | Through Hole | |
Termination Style | PC Pin | |
Contact Material | - | |
Coil Power | - | |
Coil Resistance | 100 Ohms | |
Operating Temperature | -20°C ~ 125°C | |
Standard Package | 29 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 2271-05-001 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
2271-05-001 is in stock for immediate shipping now. We are the distributor of Coto Technology all series components. The condition of 2271-05-001 is new and unused, you can buy 2271-05-001 Coto Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2271-05-001.
