| Manufacturer Part Number: | 225P15394XD3 |
|---|---|
| Manufacturer: | Cornell Dubilier Electronics (CDE) |
| Product Category: | Film Capacitors |
| Available Quantity: | 10002 Pieces |
| Unit Price: | Quote by Email |

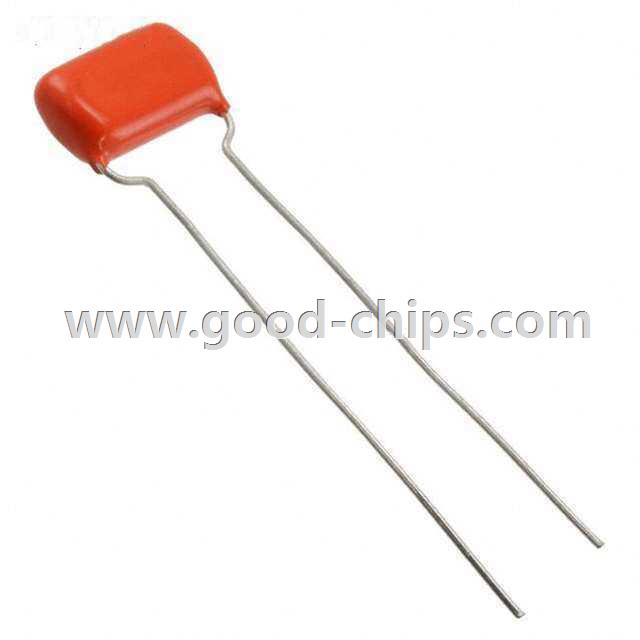

| Description: | 0.015µF Film Capacitor 200V 400V Polyester, Metallized Radial 0.799" L x 0.280" W (20.30mm x 7.10mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 225P15394XD3 Datasheet |
| Internal Part Number | 898-225P15394XD3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Orange Drop® Capacitors | |
| Online Catalog | Orange Drop® 225P Series | |
| Category | Capacitors | |
| Family | Film Capacitors | |
| Manufacturer | Cornell Dubilier Electronics (CDE) | |
| Series | Orange Drop® 225P | |
| Packaging | Bulk | |
| Part Status | Active | |
| Capacitance | 0.015µF | |
| Tolerance | ±10% | |
| Voltage Rating - AC | 200V | |
| Voltage Rating - DC | 400V | |
| Dielectric Material | Polyester, Metallized | |
| ESR (Equivalent Series Resistance) | - | |
| Operating Temperature | -55°C ~ 85°C | |
| Mounting Type | Through Hole | |
| Package / Case | Radial | |
| Size / Dimension | 0.799" L x 0.280" W (20.30mm x 7.10mm) | |
| Height - Seated (Max) | 0.579" (14.70mm) | |
| Termination | PC Pins | |
| Lead Spacing | 0.374" (9.50mm) | |
| Applications | DC Link, DC Filtering | |
| Features | Derating Recommended | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 225P15394XD3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
225P15394XD3 is in stock for immediate shipping now. We are the distributor of Cornell Dubilier Electronics (CDE) all series components. The condition of 225P15394XD3 is new and unused, you can buy 225P15394XD3 Cornell Dubilier Electronics (CDE) with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 225P15394XD3.
