222171

222171
Manufacturer Part Number:222171
Manufacturer:
Product Category:Coaxial Connectors (RF)
Available Quantity:9010 Pieces
Unit Price:Quote by Email

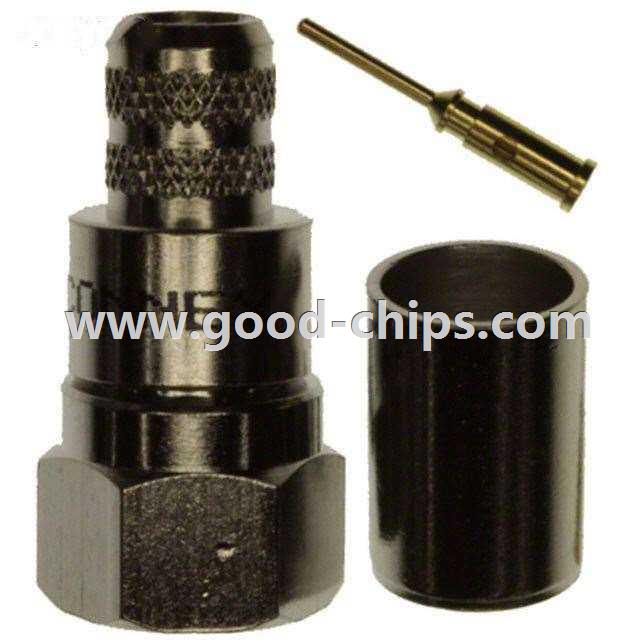

Description:F Type Connector Plug, Male Pin 75 Ohm Free Hanging (In-Line) Crimp
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 222171 Datasheet
222171´s Parameters
Internal Part Number898-222171
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Video FileHow to Crimp a BNC 3 Piece Crimp Coaxial Connector on RG-59 Cable
CategoryConnectors, Interconnects
FamilyCoaxial Connectors (RF)
ManufacturerAmphenol-RF Division
Series-
PackagingBulk
Part StatusActive
Connector StyleF Type
Connector TypePlug, Male Pin
Contact TerminationCrimp
Shield TerminationCrimp
Impedance75 Ohm
Mounting TypeFree Hanging (In-Line)
Cable GroupRG-6 Plenum, Belden 1695A
Fastening TypeThreaded
Frequency - Max2GHz
Features-
Housing ColorSilver
Ingress Protection-
Body MaterialBrass
Body FinishNickel
Center Contact MaterialBrass
Center Contact PlatingGold
Dielectric MaterialPolyoxymethylene (POM) Acetal
Voltage Rating-
Operating Temperature-
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement Part222171
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

222171 is in stock for immediate shipping now. We are the distributor of Amphenol-RF Division all series components. The condition of 222171 is new and unused, you can buy 222171 Amphenol-RF Division with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 222171.
