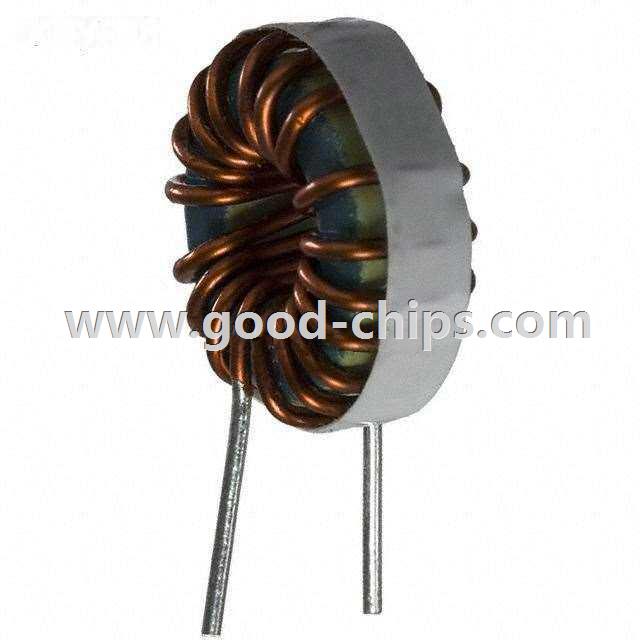

2200HT-470-V

2200HT-470-V
Manufacturer Part Number:2200HT-470-V
Manufacturer:
Product Category:Fixed Inductors
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:47µH Shielded Toroidal Inductor 6.4A 42 mOhm Max Radial
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 2200HT-470-V Datasheet
2200HT-470-V´s Parameters
Internal Part Number898-2200HT-470-V
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryInductors, Coils, Chokes
FamilyFixed Inductors
ManufacturerBourns Inc.
Series2200HT
PackagingBulk
Part StatusObsolete
TypeToroidal
Material - CorePowdered Iron
Inductance47µH
Tolerance±15%
Current Rating6.4A
Current - Saturation-
ShieldingShielded
DC Resistance (DCR)42 mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-55°C ~ 200°C
Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial
Size / Dimension0.950" Dia x 0.550" W (24.13mm x 13.97mm)
Height - Seated (Max)-
Standard Package 100
Weight0.001 KG
ApplicationEmail for details
Replacement Part2200HT-470-V
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

2200HT-470-V is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 2200HT-470-V is new and unused, you can buy 2200HT-470-V Bourns Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 2200HT-470-V.
