| Manufacturer Part Number: | 22-55-2502 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Housings |
| Available Quantity: | 9404 Pieces |
| Unit Price: | Quote by Email |

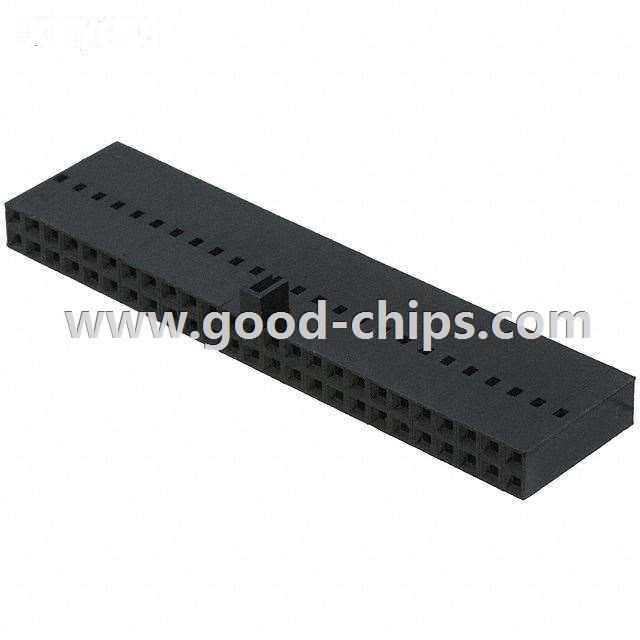

| Description: | 50 Position Rectangular Housing Connector Receptacle Black 0.100" (2.54mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 22-55-2502 Datasheet |
| Internal Part Number | 898-22-55-2502 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | SL Family Roadmap | |
| Video File | Molex - Product Spotlight - SL™ Modular Connectors Molex RF Connectors | Digi-Key Daily | |
| RoHS Information | 22-55-2502 Cert of Compliance | |
| Featured Product | SL™ Modular Connectors | |
| 3D Model | 22-55-2502.stp 22-55-2502 .pdf | |
| Online Catalog | SL™ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Housings | |
| Manufacturer | Molex Connector Corporation | |
| Series | SL™ 70450 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle | |
| Contact Type | Female Socket | |
| Number of Positions | 50 | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Contact Termination | Crimp | |
| Fastening Type | - | |
| Color | Black | |
| Features | Polarizing Key | |
| Note | Contacts Not Provided | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 22-55-2502 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
22-55-2502 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 22-55-2502 is new and unused, you can buy 22-55-2502 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 22-55-2502.
