| Manufacturer Part Number: | 22-45-4056 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Terminal Blocks - Wire to Board |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

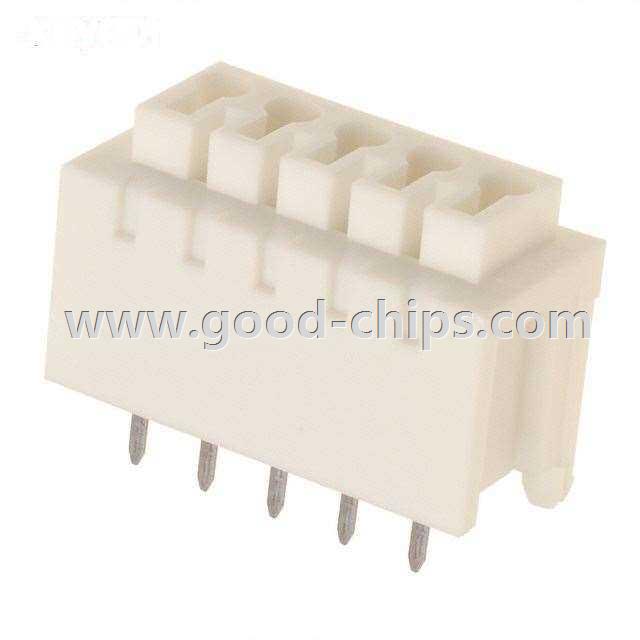

| Description: | 5 Position Wire to Board Terminal Block Vertical with Board 0.180" (4.57mm) Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 22-45-4056 Datasheet |
| Internal Part Number | 898-22-45-4056 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Terminal Blocks - Wire to Board | |
| Manufacturer | Molex Connector Corporation | |
| Series | 42732 | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Number of Levels | 1 | |
| Positions Per Level | 5 | |
| Pitch | 0.180" (4.57mm) | |
| Mating Orientation | Vertical with Board | |
| Current | - | |
| Voltage | 600V | |
| Wire Gauge | 16-20 AWG | |
| Mounting Type | Through Hole | |
| Wire Termination | Screwless - Leg Spring, Push-In Spring | |
| Features | - | |
| Color | White | |
| Operating Temperature | -10°C ~ 70°C | |
| Housing Material | Polyester, Glass Filled | |
| Contact Material - Plating | Phosphor Bronze - Tin Plated | |
| Clamp Material - Plating | - | |
| Screw Material - Plating | - | |
| Torque - Screw | - | |
| Screw Thread | - | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 22-45-4056 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
22-45-4056 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 22-45-4056 is new and unused, you can buy 22-45-4056 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 22-45-4056.
