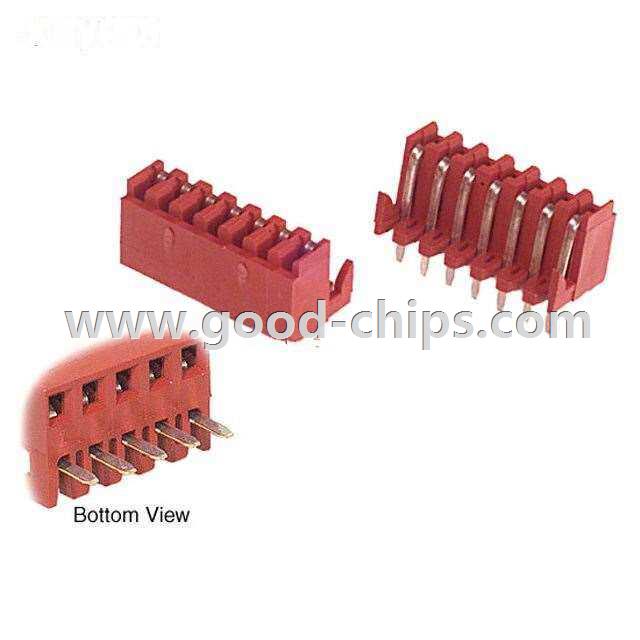

Manufacturer Part Number: | 22-14-2074 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets |
Available Quantity: | 9065 Pieces |
Unit Price: | Quote by Email |
Description: | 7 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 22-14-2074 Datasheet |
Internal Part Number | 898-22-14-2074 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Molex RF Connectors | Digi-Key Daily | |
RoHS Information | 22-14-2074 Cert of Compliance | |
Featured Product | KK® Interconnect Solutions Power Connectors | |
3D Model | 22-14-2074.stp | |
PCN Obsolescence/ EOL | Resin Color 01/Jan/2002 | |
Online Catalog | KK® 4455 and 44812 Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Receptacles, Female Sockets | |
Manufacturer | Molex Connector Corporation | |
Series | KK® 4455 | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | Receptacle, Bottom Entry | |
Contact Type | Female Socket | |
Number of Positions | 7 | |
Number of Positions Loaded | All | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Mounting Type | Through Hole | |
Termination | Solder | |
Fastening Type | - | |
Features | - | |
Contact Finish | Tin | |
Contact Finish Thickness | 100µin (2.54µm) | |
Color | White | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 22-14-2074 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
22-14-2074 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 22-14-2074 is new and unused, you can buy 22-14-2074 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 22-14-2074.
