| Manufacturer Part Number: | 22-14-2024 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets |
| Available Quantity: | 9267 Pieces |
| Unit Price: | Quote by Email |

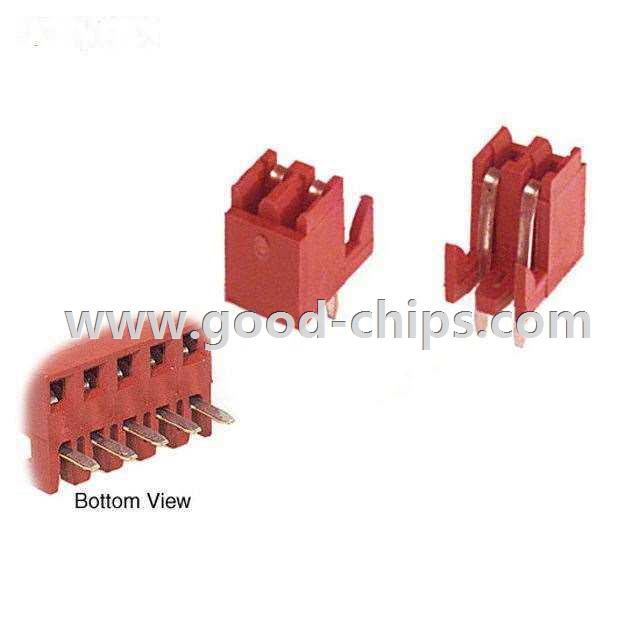

| Description: | 2 Position Receptacle, Bottom Entry Connector 0.100" (2.54mm) Through Hole Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 22-14-2024 Datasheet |
| Internal Part Number | 898-22-14-2024 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Molex RF Connectors | Digi-Key Daily | |
| RoHS Information | 22-14-2024 Cert of Compliance | |
| Featured Product | KK® Interconnect Solutions Power Connectors | |
| 3D Model | 22-14-2024.stp | |
| PCN Obsolescence/ EOL | Resin Color 01/Jan/2002 | |
| Online Catalog | KK® 4455 and 44812 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Receptacles, Female Sockets | |
| Manufacturer | Molex Connector Corporation | |
| Series | KK® 4455 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Receptacle, Bottom Entry | |
| Contact Type | Female Socket | |
| Number of Positions | 2 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | - | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 100µin (2.54µm) | |
| Color | White | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 22-14-2024 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
22-14-2024 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 22-14-2024 is new and unused, you can buy 22-14-2024 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 22-14-2024.
