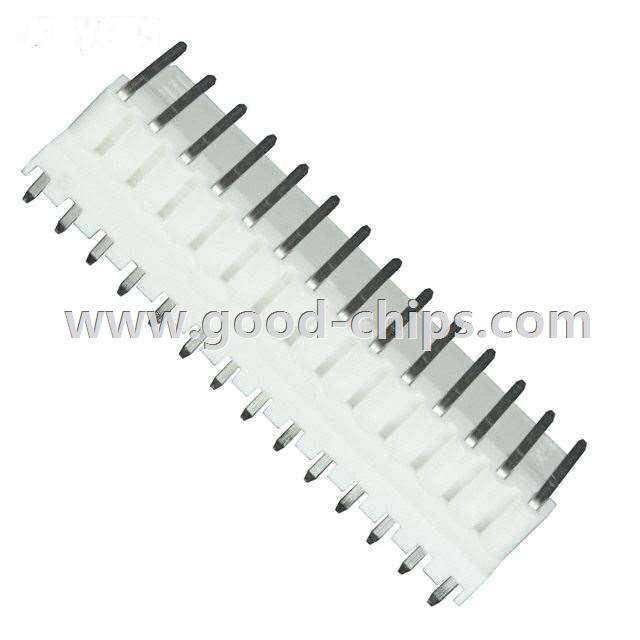

| Manufacturer Part Number: | 22-05-1142 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9209 Pieces |
| Unit Price: | Quote by Email |
| Description: | 14 Positions Header, Unshrouded Connector 0.098" (2.50mm) Through Hole, Right Angle Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 22-05-1142 Datasheet |
| Internal Part Number | 898-22-05-1142 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Molex - Product of the Quarter - Mini-Fit® Molex RF Connectors | Digi-Key Daily | |
| RoHS Information | 22-05-1142 Cert of Compliance | |
| Featured Product | KK® Interconnect Solutions Power Connectors | |
| 3D Model | 22-05-1142.stp | |
| Online Catalog | KK® Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Molex Connector Corporation | |
| Series | KK® 5046 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Unshrouded | |
| Number of Positions | 14 | |
| Number of Positions Loaded | All | |
| Pitch | 0.098" (2.50mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | 0.295" (7.49mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | Friction Lock | |
| Features | - | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 200µin (5.08µm) | |
| Color | Natural | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 22-05-1142 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
22-05-1142 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 22-05-1142 is new and unused, you can buy 22-05-1142 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 22-05-1142.
