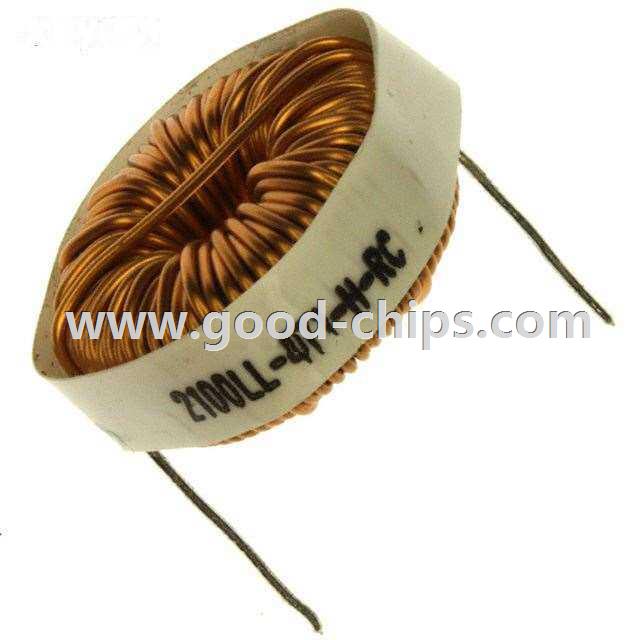

Manufacturer Part Number: | 2100LL-471-H-RC |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 10003 Pieces |
Unit Price: | Quote by Email |
Description: | 470µH Shielded Toroidal Inductor 2.3A 124 mOhm Max Radial |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 2100LL-471-H-RC Datasheet |
Internal Part Number | 898-2100LL-471-H-RC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Magnetic Product Overview | |
3D Model | 2100LL-471-H-RC.stp | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | 2100LL Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Bourns Inc. | |
Series | 2100LL | |
Packaging | Bulk | |
Part Status | Active | |
Type | Toroidal | |
Material - Core | Sendust | |
Inductance | 470µH | |
Tolerance | ±15% | |
Current Rating | 2.3A | |
Current - Saturation | - | |
Shielding | Shielded | |
DC Resistance (DCR) | 124 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 1kHz | |
Mounting Type | Through Hole | |
Package / Case | Radial | |
Size / Dimension | 0.860" Dia (21.84mm) | |
Height - Seated (Max) | 0.450" (11.43mm) | |
Standard Package | 144 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 2100LL-471-H-RC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
2100LL-471-H-RC is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 2100LL-471-H-RC is new and unused, you can buy 2100LL-471-H-RC Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 2100LL-471-H-RC.
