.jpg)

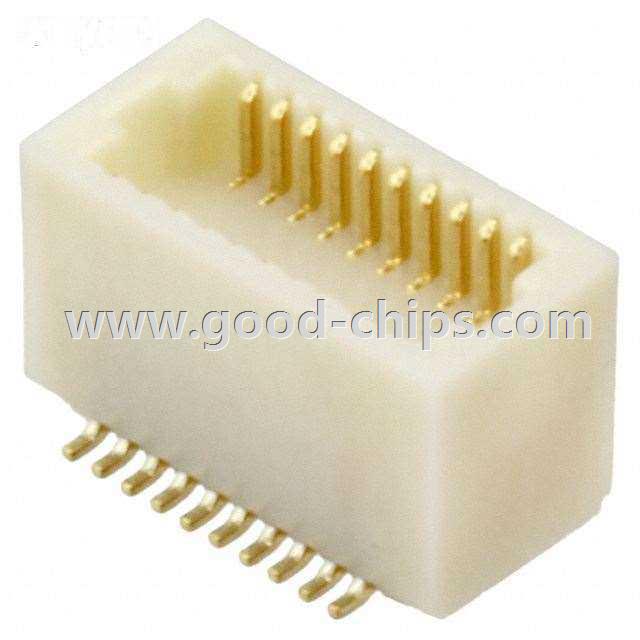

| Manufacturer Part Number: | 20P5.0-JMCS-G-TF(N) |
|---|---|
| Manufacturer: | JST Sales America Inc. |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 10510 Pieces |
| Unit Price: | Quote by Email |
| Description: | 20 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 20P5.0-JMCS-G-TF(N) Datasheet |
| Internal Part Number | 898-20P5.0-JMCS-G-TF(N) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | JMC Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | JST Sales America Inc. | |
| Series | JMC | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Type | Plug, Outer Shroud Contacts | |
| Number of Positions | 20 | |
| Pitch | 0.020" (0.50mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Mated Stacking Heights | 5mm | |
| Height Above Board | - | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 20P5.0-JMCS-G-TF(N) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
20P5.0-JMCS-G-TF(N) is in stock for immediate shipping now. We are the distributor of JST Sales America Inc. all series components. The condition of 20P5.0-JMCS-G-TF(N) is new and unused, you can buy 20P5.0-JMCS-G-TF(N) JST Sales America Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 20P5.0-JMCS-G-TF(N).
