Manufacturer Part Number: | 20KPA180C-B |
---|---|
Manufacturer: | Littelfuse Inc. |
Product Category: | TVS - Diodes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 180VWM 305.55VC P600 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 20KPA180C-B Datasheet |
Internal Part Number | 898-20KPA180C-B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Transient Voltage Suppression (TVS) Diodes | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | Littelfuse Inc. | |
Series | 20KPA | |
Packaging | Bulk | |
Part Status | Active | |
Type | Zener | |
Unidirectional Channels | - | |
Bidirectional Channels | 1 | |
Voltage - Reverse Standoff (Typ) | 180V | |
Voltage - Breakdown (Min) | 190.04V | |
Voltage - Clamping (Max) @ Ipp | 305.55V | |
Current - Peak Pulse (10/1000µs) | 69.4A | |
Power - Peak Pulse | 20000W (20kW) | |
Power Line Protection | No | |
Applications | General Purpose | |
Capacitance @ Frequency | - | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Through Hole | |

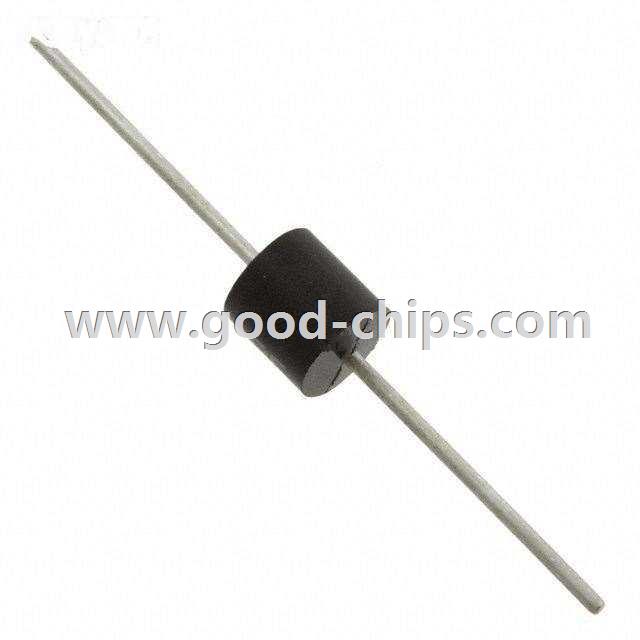

Package / Case | P600, Axial | |
Supplier Device Package | P600 | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 20KPA180C-B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
20KPA180C-B is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of 20KPA180C-B is new and unused, you can buy 20KPA180C-B Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 20KPA180C-B.
