Manufacturer Part Number: | 20HV11B102MN |
---|---|
Manufacturer: | Kemet |
Product Category: | Ceramic Capacitors |
Available Quantity: | 9058 Pieces |
Unit Price: | Quote by Email |

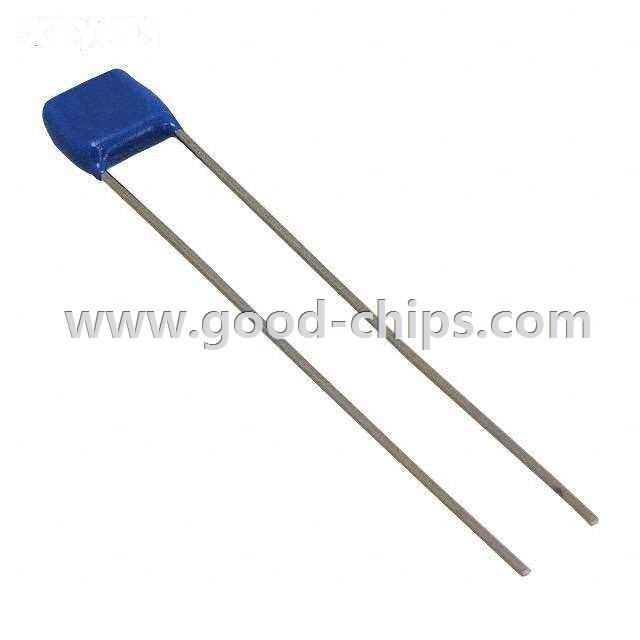

Description: | 1000pF 2000V (2kV) Ceramic Capacitor X7R Radial 0.320" L x 0.250" W (8.13mm x 6.35mm) |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 20HV11B102MN Datasheet |
Internal Part Number | 898-20HV11B102MN | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Axial and Radial Leaded Multilayer Ceramic Capacitors | |
Online Catalog | HV Series | |
Category | Capacitors | |
Family | Ceramic Capacitors | |
Manufacturer | Kemet | |
Series | HV | |
Packaging | Bulk | |
Part Status | Active | |
Capacitance | 1000pF | |
Tolerance | ±20% | |
Voltage - Rated | 2000V (2kV) | |
Temperature Coefficient | X7R | |
Mounting Type | Through Hole | |
Operating Temperature | -55°C ~ 200°C | |
Applications | SMPS Filtering, Bypass, Decoupling | |
Ratings | - | |
Package / Case | Radial | |
Size / Dimension | 0.320" L x 0.250" W (8.13mm x 6.35mm) | |
Height - Seated (Max) | 0.300" (7.62mm) | |
Thickness (Max) | - | |
Lead Spacing | 0.200" (5.08mm) | |
Features | High Voltage, High Temperature | |
Lead Style | Straight | |
Standard Package | 24 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 20HV11B102MN | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
20HV11B102MN is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of 20HV11B102MN is new and unused, you can buy 20HV11B102MN Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 20HV11B102MN.
