| Manufacturer Part Number: | 209-6LPST |
|---|---|
| Manufacturer: | Tusonix a Subsidiary of CTS Electronic Components |
| Product Category: | DIP Switches |
| Available Quantity: | 11052 Pieces |
| Unit Price: | Quote by Email |

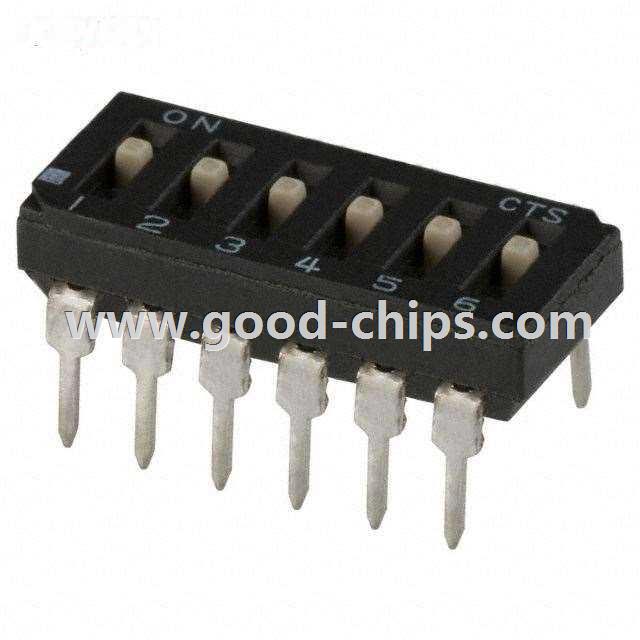

| Description: | Dip Switch SPST 6 Position Through Hole Slide (Standard) Actuator 100mA 20VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 209-6LPST Datasheet |
| Internal Part Number | 898-209-6LPST | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | DIP Switch | |
| Online Catalog | 209 Series | |
| Category | Switches | |
| Family | DIP Switches | |
| Manufacturer | CTS Electrocomponents | |
| Series | 209 | |
| Packaging | Tube | |
| Part Status | Active | |
| Circuit | SPST | |
| Number of Positions | 6 | |
| Current Rating | 100mA | |
| Voltage Rating | 20VDC | |
| Actuator Type | Slide (Standard) | |
| Actuator Level | Flush, Recessed | |
| Contact Material | Beryllium Copper | |
| Contact Finish | Gold | |
| Height Above Board | 0.180" (4.57mm) | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Pitch | 0.100" (2.54mm), Full | |
| Washable | Yes | |
| Features | Epoxy Sealed Terminals, Tape Seal | |
| Body Material | - | |
| Length | 0.658" (16.71mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Mechanical Life | - | |
| Electrical Life | 2,000 Cycles | |
| Standard Package | 30 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 209-6LPST | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
209-6LPST is in stock for immediate shipping now. We are the distributor of Tusonix a Subsidiary of CTS Electronic Components all series components. The condition of 209-6LPST is new and unused, you can buy 209-6LPST Tusonix a Subsidiary of CTS Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 209-6LPST.
