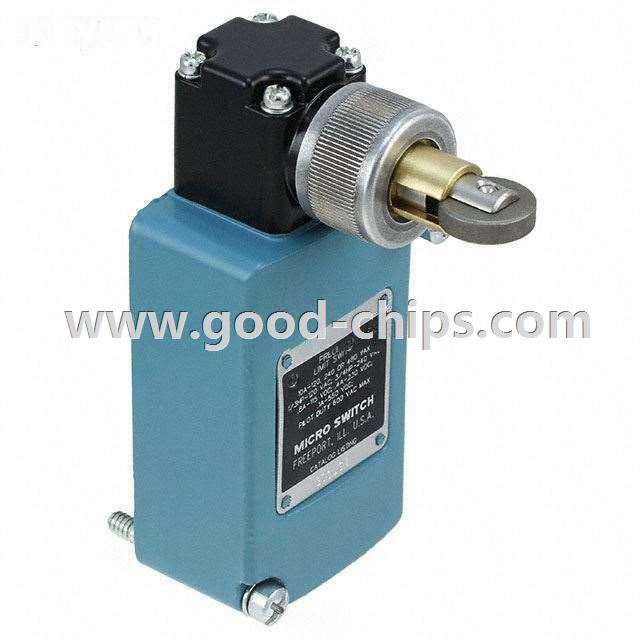

| Manufacturer Part Number: | 203LS1 |
|---|---|
| Manufacturer: | Honeywell Sensing and Productivity Solutions |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION SPDT 10A 120V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 203LS1 Datasheet |
| Internal Part Number | 898-203LS1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | MICRO SWITCH™ LS Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | Honeywell Sensing and Productivity Solutions | |
| Series | LS | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT-DB | |
| Switch Function | On-Mom | |
| Current Rating | 10A (AC), 800mA (DC) | |
| Voltage Rating - AC | 120V | |
| Voltage Rating - DC | 115V | |
| Actuator Type | Side Roller Plunger | |
| Mounting Type | Chassis Mount | |
| Termination Style | Plug In | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | - | |
| Operating Force, Torque | 4082gf | |
| Release Force | 907gf | |
| Pretravel | 0.110" (2.8mm) | |
| Differential Travel | 0.040" (1.0mm) | |
| Overtravel | 0.219" (5.6mm) | |
| Operating Position | 2.130" (54.1mm) | |
| Mechanical Life | - | |
| Electrical Life | - | |
| Operating Temperature | -29°C ~ 71°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 203LS1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
203LS1 is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of 203LS1 is new and unused, you can buy 203LS1 Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 203LS1.
