Manufacturer Part Number: | 20020705-M031B01LF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | Terminal Blocks - Wire to Board |
Available Quantity: | 11933 Pieces |
Unit Price: | Quote by Email |

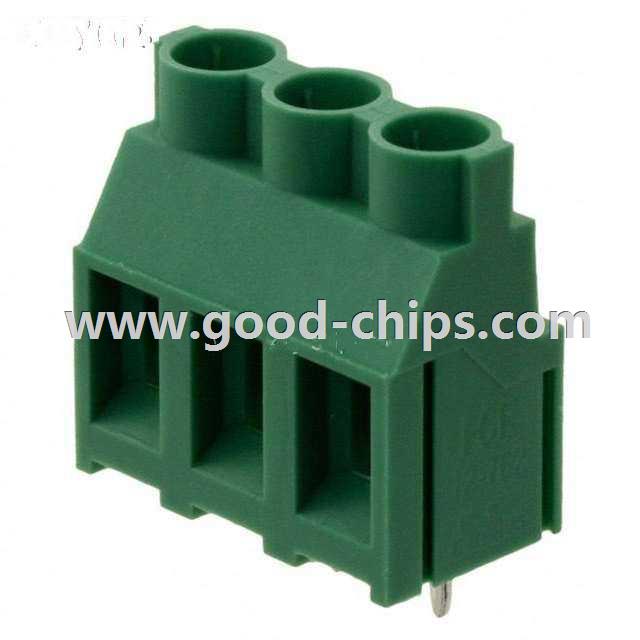

Description: | 3 Position Wire to Board Terminal Block Horizontal with Board 0.300" (7.62mm) Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 20020705-M031B01LF Datasheet |
Internal Part Number | 898-20020705-M031B01LF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Terminal Blocks | |
Featured Product | Signal and Power Terminal Blocks | |
PCN Design/Specification | Multiple Devices Design 28/Apr/2014 | |
PCN Part Number | Anytek Integration 02/Apr/2015 | |
Online Catalog | 12-762 Series | |
Category | Connectors, Interconnects | |
Family | Terminal Blocks - Wire to Board | |
Manufacturer | Amphenol FCI | |
Series | 12-762 | |
Packaging | Bulk | |
Part Status | Active | |
Number of Levels | 1 | |
Positions Per Level | 3 | |
Pitch | 0.300" (7.62mm) | |
Mating Orientation | Horizontal with Board | |
Current | 30A | |
Voltage | 300V | |
Wire Gauge | 10-24 AWG | |
Mounting Type | Through Hole | |
Wire Termination | Screw - Rising Cage Clamp | |
Features | Interlocking (Side) | |
Color | Green | |
Operating Temperature | -40°C ~ 115°C | |
Housing Material | Thermoplastic | |
Contact Material - Plating | Copper Alloy - Tin Plated | |
Clamp Material - Plating | Copper Alloy - Nickel Plated | |
Screw Material - Plating | Steel - Zinc Plated | |
Torque - Screw | 0.78 Nm (6.9 Lb-In) | |
Screw Thread | M3.5 | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 20020705-M031B01LF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
20020705-M031B01LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 20020705-M031B01LF is new and unused, you can buy 20020705-M031B01LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 20020705-M031B01LF.
