| Manufacturer Part Number: | 20020316-H041B01LF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | Terminal Blocks - Wire to Board |
| Available Quantity: | 11030 Pieces |
| Unit Price: | Quote by Email |

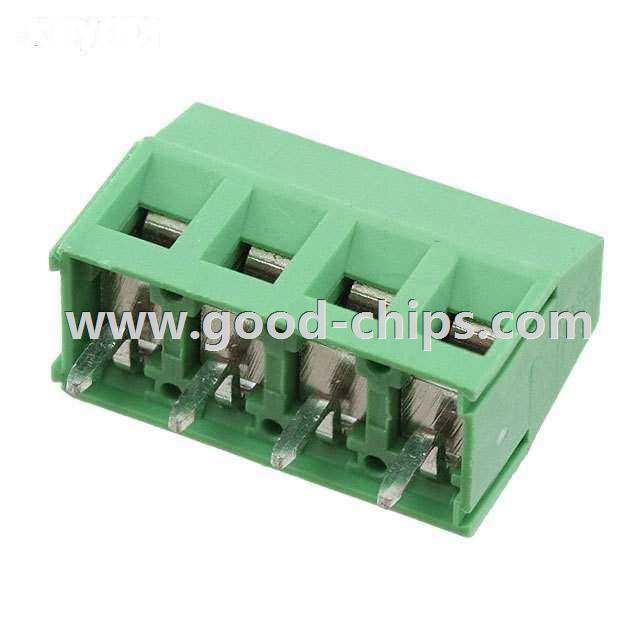

| Description: | 4 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 20020316-H041B01LF Datasheet |
| Internal Part Number | 898-20020316-H041B01LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Terminal Blocks | |
| Featured Product | Signal and Power Terminal Blocks | |
| PCN Design/Specification | Multiple Devices Design 28/Apr/2014 | |
| PCN Part Number | Anytek Integration 02/Apr/2015 | |
| Category | Connectors, Interconnects | |
| Family | Terminal Blocks - Wire to Board | |
| Manufacturer | Amphenol FCI | |
| Series | 21-508 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Number of Levels | 1 | |
| Positions Per Level | 4 | |
| Pitch | 0.200" (5.08mm) | |
| Mating Orientation | Horizontal with Board | |
| Current | 16A | |
| Voltage | 300V | |
| Wire Gauge | 12-28 AWG | |
| Mounting Type | Through Hole | |
| Wire Termination | Screw - Rising Cage Clamp | |
| Features | Interlocking (Side) | |
| Color | Green | |
| Operating Temperature | -40°C ~ 115°C | |
| Housing Material | Thermoplastic | |
| Contact Material - Plating | Copper Alloy - Tin Plated | |
| Clamp Material - Plating | Copper Alloy - Nickel Plated | |
| Screw Material - Plating | Steel - Zinc Plated | |
| Torque - Screw | 0.4 Nm (3.5 Lb-In) | |
| Screw Thread | M3 | |
| Standard Package | 330 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 20020316-H041B01LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
20020316-H041B01LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 20020316-H041B01LF is new and unused, you can buy 20020316-H041B01LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 20020316-H041B01LF.
