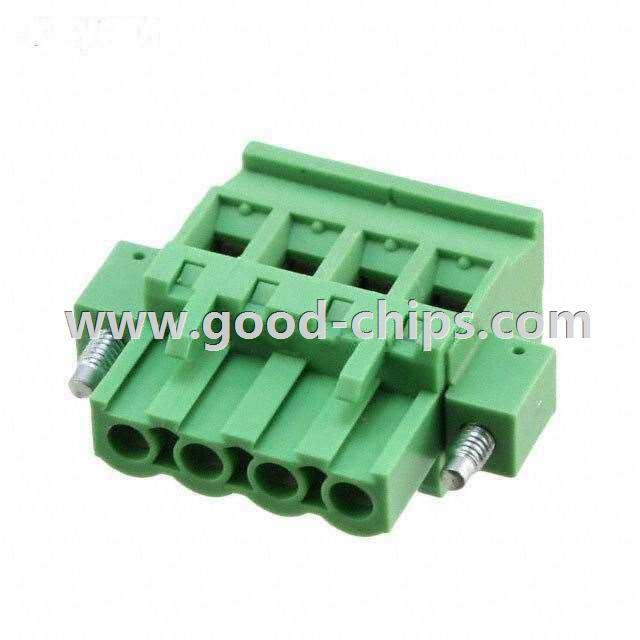

| Manufacturer Part Number: | 20020009-H041B01LF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
| Available Quantity: | 9443 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 90° Free Hanging (In-Line) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 20020009-H041B01LF Datasheet |
| Internal Part Number | 898-20020009-H041B01LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Signal and Power Terminal Blocks | |
| PCN Design/Specification | Multiple Devices Design 28/Apr/2014 | |
| PCN Part Number | Anytek Integration 02/Apr/2015 | |
| Category | Connectors, Interconnects | |
| Family | Terminal Blocks - Headers, Plugs and Sockets | |
| Manufacturer | Amphenol FCI | |
| Series | 02-508 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Plug, Female Sockets | |
| Number of Positions | 4 | |
| Positions Per Level | 4 | |
| Number of Levels | 1 | |
| Pitch | 0.200" (5.08mm) | |
| Header Orientation | - | |
| Plug Wire Entry | 90° | |
| Termination Style | Screw - Rising Cage Clamp | |
| Mounting Type | Free Hanging (In-Line) | |
| Current - IEC | - | |
| Voltage - IEC | - | |
| Current - UL | 12A | |
| Voltage - UL | 300V | |
| Wire Gauge or Range - AWG | 12-24 AWG | |
| Wire Gauge or Range - mm² | 1-2.5mm² | |
| Color | Green | |
| Operating Temperature | -40°C ~ 115°C | |
| Contact Mating Finish | Tin | |
| Features | Mating Flange, Retention Latches (Wire Side) | |
| Standard Package | 120 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 20020009-H041B01LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
20020009-H041B01LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 20020009-H041B01LF is new and unused, you can buy 20020009-H041B01LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 20020009-H041B01LF.
