Manufacturer Part Number: | 20020003-G101B01LF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | Terminal Blocks - Headers, Plugs and Sockets |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

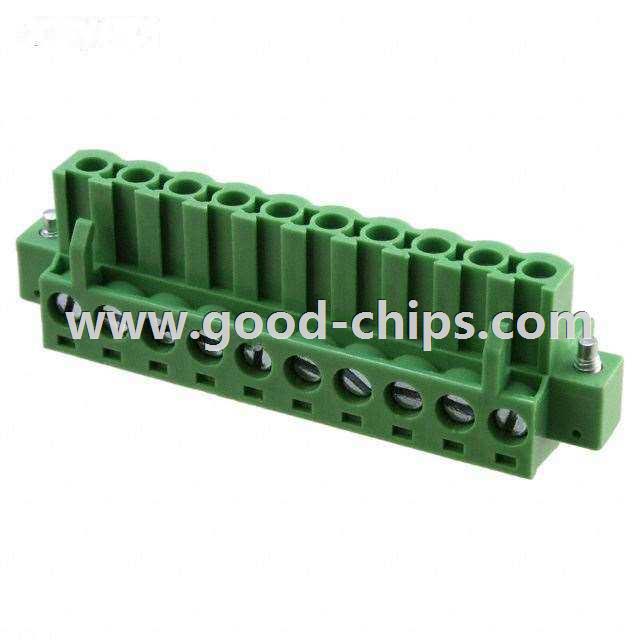

Description: | 10 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 20020003-G101B01LF Datasheet |
Internal Part Number | 898-20020003-G101B01LF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Signal and Power Terminal Blocks | |
PCN Design/Specification | Multiple Devices Design 28/Apr/2014 | |
PCN Part Number | Anytek Integration 02/Apr/2015 | |
Category | Connectors, Interconnects | |
Family | Terminal Blocks - Headers, Plugs and Sockets | |
Manufacturer | Amphenol FCI | |
Series | 01-500 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Plug, Female Sockets | |
Number of Positions | 10 | |
Positions Per Level | 10 | |
Number of Levels | 1 | |
Pitch | 0.197" (5.00mm) | |
Header Orientation | - | |
Plug Wire Entry | 180° | |
Termination Style | Screw - Rising Cage Clamp | |
Mounting Type | Free Hanging (In-Line) | |
Current - IEC | - | |
Voltage - IEC | - | |
Current - UL | 12A | |
Voltage - UL | 300V | |
Wire Gauge or Range - AWG | 12-24 AWG | |
Wire Gauge or Range - mm² | 1-2.5mm² | |
Color | Green | |
Operating Temperature | -40°C ~ 115°C | |
Contact Mating Finish | Tin | |
Features | Mating Flange, Retention Latches (Non-Wire Side) | |
Standard Package | 65 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 20020003-G101B01LF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
20020003-G101B01LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 20020003-G101B01LF is new and unused, you can buy 20020003-G101B01LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 20020003-G101B01LF.
