| Manufacturer Part Number: | 1XE301 |
|---|---|
| Manufacturer: | Honeywell Sensing and Productivity Solutions |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9019 Pieces |
| Unit Price: | Quote by Email |

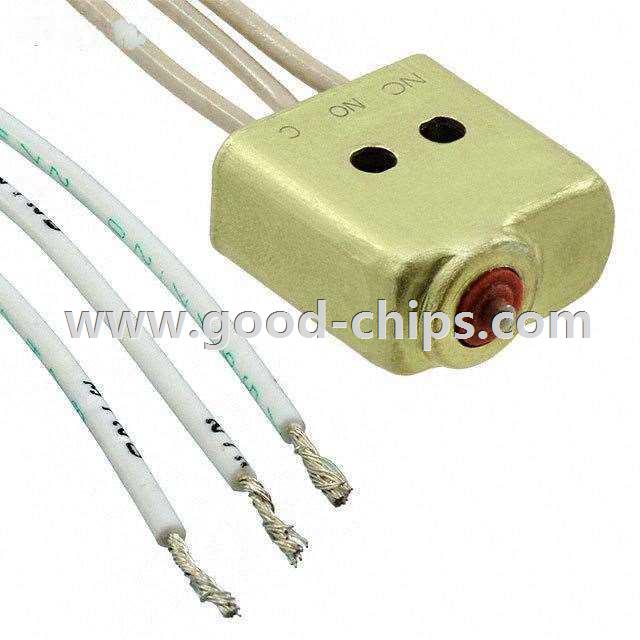

| Description: | SWITCH PIN PLUNGER SPDT 1A 28V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1XE301 Datasheet |
| Internal Part Number | 898-1XE301 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | MICRO SWITCH™ XE Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | Honeywell Sensing and Productivity Solutions | |
| Series | XE | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 1A (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 28V | |
| Actuator Type | Round (Pin Plunger) | |
| Mounting Type | Chassis Mount | |
| Termination Style | Wire Leads | |
| Ingress Protection | - | |
| Features | Cable Length 1' | |
| Operating Force, Torque | 141.7 ~ 482gf | |
| Release Force | 113gf | |
| Pretravel | 0.050" (1.27mm) | |
| Differential Travel | 0.005" (0.13mm) | |
| Overtravel | 0.004" (0.1mm) | |
| Operating Position | 0.425" (10.8mm) | |
| Mechanical Life | - | |
| Electrical Life | - | |
| Operating Temperature | -54°C ~ 105°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1XE301 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1XE301 is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of 1XE301 is new and unused, you can buy 1XE301 Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1XE301.
