| Manufacturer Part Number: | 1SS383T1G |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Diodes - Rectifiers - Arrays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Array 2 Independent Schottky 40V 300mA (DC) Surface Mount SC-82 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1SS383T1G Datasheet |
| Internal Part Number | 898-1SS383T1G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 30/Jun/2006 | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Arrays | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Diode Configuration | 2 Independent | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 40V | |
| Current - Average Rectified (Io) (per Diode) | 300mA (DC) | |
| Voltage - Forward (Vf) (Max) @ If | 600mV @ 100mA | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 5µA @ 40V | |
| Mounting Type | Surface Mount | |

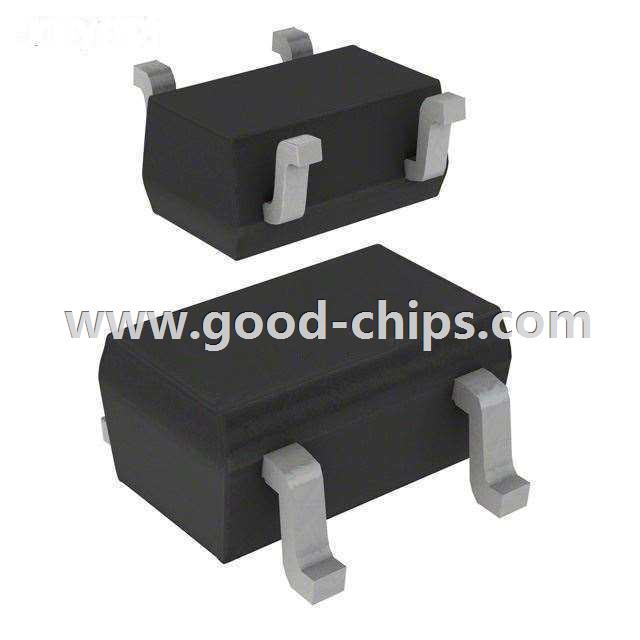

| Package / Case | SC-82 | |
| Supplier Device Package | SC-82 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1SS383T1G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1SS383T1G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of 1SS383T1G is new and unused, you can buy 1SS383T1G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1SS383T1G.
