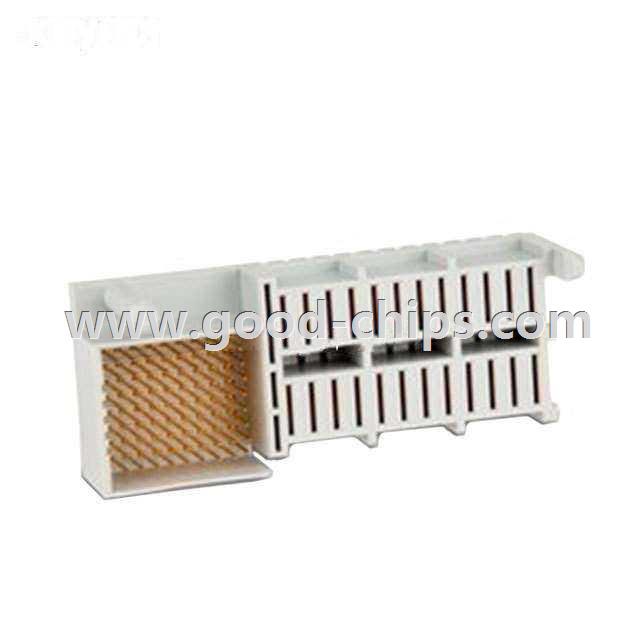

| Manufacturer Part Number: | 1P01-1110-AS |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Backplane Connectors - Specialized |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN R/A SCKT & PWR MALE MODULE |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1P01-1110-AS Datasheet |
| Internal Part Number | 898-1P01-1110-AS | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 1P01-11x0-xx.igs 1P01-11x0-xx.stp 1P01-11x0-xx.x_t | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Specialized | |
| Manufacturer | 3M | |
| Series | 1P01 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Usage | - | |
| Connector Type | Power Module, Male Pins and Female Blades | |
| Connector Style | MicroTCA™ | |
| Number of Positions | 96 | |
| Number of Positions Loaded | All | |
| Pitch | - | |
| Number of Rows | - | |
| Number of Columns | - | |
| Mounting Type | Board Edge, Through Hole, Right Angle | |
| Termination | Press-Fit | |
| Contact Layout, Typical | 72 Signal, 24 Power | |
| Features | Mating Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Color | Gray | |
| Current Rating | - | |
| Material Flammability Rating | UL94 V-0 | |
| Operating Temperature | - | |
| Voltage Rating | - | |
| Standard Package | 180 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1P01-1110-AS | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1P01-1110-AS is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 1P01-1110-AS is new and unused, you can buy 1P01-1110-AS 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1P01-1110-AS.
