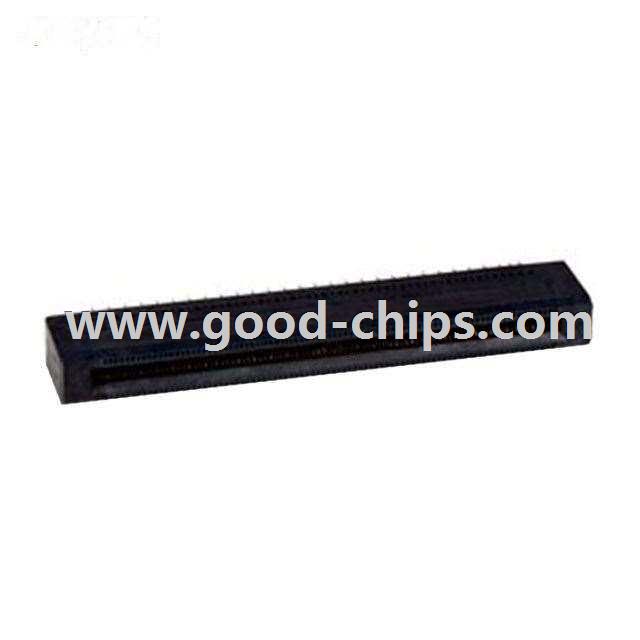

| Manufacturer Part Number: | 1P00-2000-KR |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Card Edge Connectors - Edgeboard Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN BACKPLANE AMC MEZZANNE |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1P00-2000-KR Datasheet |
| Internal Part Number | 898-1P00-2000-KR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 1P00-2000-xx.igs 1P00-2000-xx.stp 1P00-2000-xx.x_t | |
| Category | Connectors, Interconnects | |
| Family | Card Edge Connectors - Edgeboard Connectors | |
| Manufacturer | 3M | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Card Type | MicroTCA™ | |
| Gender | Female | |
| Number of Positions/Bay/Row | 85 | |
| Number of Positions | 170 | |
| Card Thickness | 0.055" (1.40mm) | |
| Number of Rows | 2 | |
| Pitch | 0.029" (0.75mm) | |
| Features | - | |
| Mounting Type | Through Hole | |
| Termination | Press-Fit | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Contact Type | - | |
| Color | Black | |
| Flange Feature | - | |
| Operating Temperature | - | |
| Material - Insulation | Liquid Crystal Polymer (LCP) | |
| Read Out | Dual | |
| Standard Package | 600 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1P00-2000-KR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1P00-2000-KR is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 1P00-2000-KR is new and unused, you can buy 1P00-2000-KR 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1P00-2000-KR.
