| Manufacturer Part Number: | 1N6392 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9118 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE SCHOTTKY 45V 54A DO5 |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1N6392 Datasheet |
| Internal Part Number | 898-1N6392 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Schottky Rectifier | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 45V | |
| Current - Average Rectified (Io) | 54A | |
| Voltage - Forward (Vf) (Max) @ If | 820mV @ 120A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | - | |
| Current - Reverse Leakage @ Vr | 2mA @ 45V | |
| Capacitance @ Vr, F | 3000pF @ 5V, 1MHz | |
| Mounting Type | Chassis, Stud Mount | |

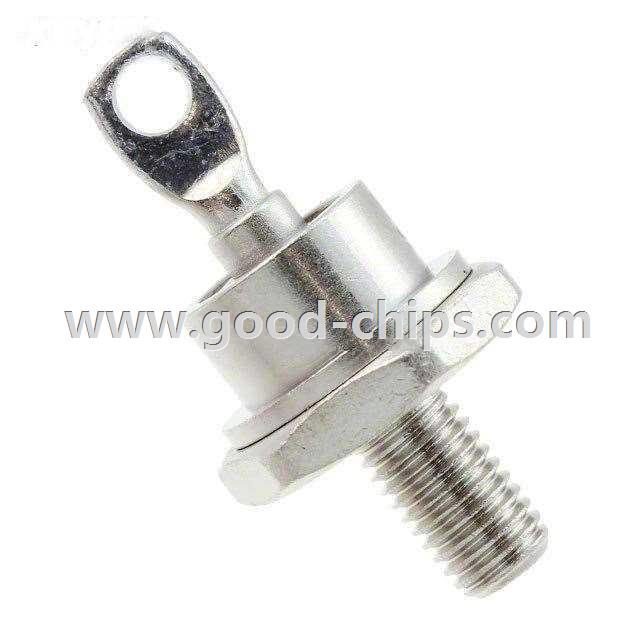

| Package / Case | DO-203AB, DO-5, Stud | |
| Supplier Device Package | DO-5 | |
| Operating Temperature - Junction | -55°C ~ 175°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1N6392 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1N6392 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of 1N6392 is new and unused, you can buy 1N6392 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1N6392.
