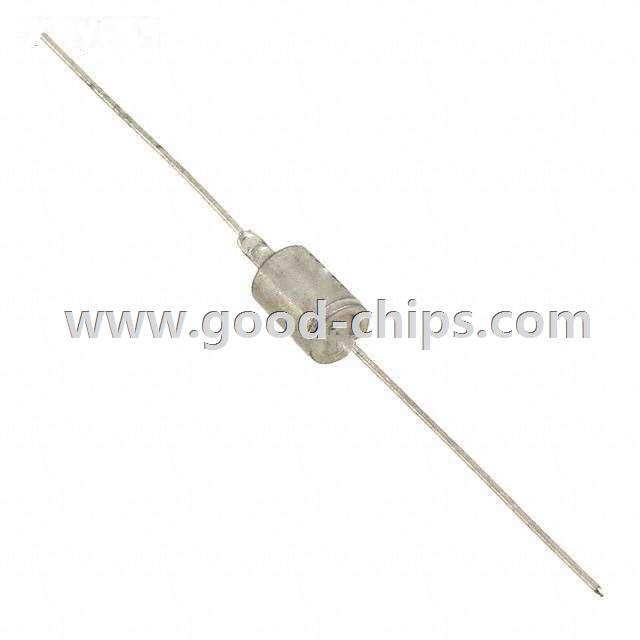

| Manufacturer Part Number: | 1N5646A |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9383 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 30.8VWM 49.9VC DO13 |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 1N5646A Datasheet |
| Internal Part Number | 898-1N5646A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 1N5xxx Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | 1 | |
| Bidirectional Channels | - | |
| Voltage - Reverse Standoff (Typ) | 30.8V | |
| Voltage - Breakdown (Min) | 34.2V | |
| Voltage - Clamping (Max) @ Ipp | 49.9V | |
| Current - Peak Pulse (10/1000µs) | 30A | |
| Power - Peak Pulse | 1500W (1.5kW) | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -65°C ~ 175°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | DO-13 | |
| Supplier Device Package | DO-13 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 1N5646A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
1N5646A is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of 1N5646A is new and unused, you can buy 1N5646A Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 1N5646A.
