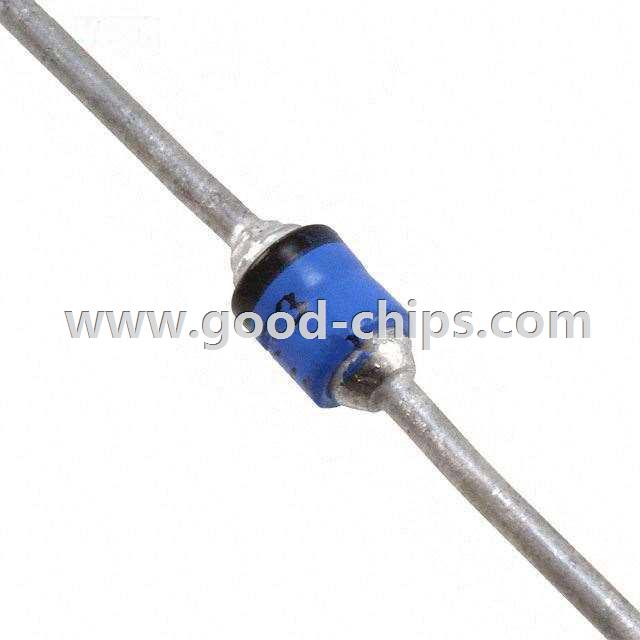

1N5419E3

1N5419E3
Manufacturer Part Number:1N5419E3
Manufacturer:
Product Category:Diodes - Rectifiers - Single
Available Quantity:9098 Pieces
Unit Price:Quote by Email
Description:DIODE GEN PURP 500V 3A AXIAL
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 1N5419E3 Datasheet
1N5419E3´s Parameters
Internal Part Number898-1N5419E3
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog Standard Diode
CategoryDiscrete Semiconductor Products
FamilyDiodes - Rectifiers - Single
ManufacturerMicrosemi Corporation
Series-
PackagingBulk
Part StatusActive
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)500V
Current - Average Rectified (Io)3A
Voltage - Forward (Vf) (Max) @ If1.5V @ 9A
SpeedFast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)250ns
Current - Reverse Leakage @ Vr1µA @ 500V
Capacitance @ Vr, F-
Mounting TypeThrough Hole
Package / CaseB, Axial
Supplier Device Package-
Operating Temperature - Junction-65°C ~ 175°C
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement Part1N5419E3
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

1N5419E3 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of 1N5419E3 is new and unused, you can buy 1N5419E3 Microsemi Corporation with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 1N5419E3.
