1N4957US

1N4957US
Manufacturer Part Number:1N4957US
Manufacturer:
Product Category:Diodes - Zener - Single
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:Zener Diode 9.1V 5W ±5% Surface Mount D-5B
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 1N4957US Datasheet
1N4957US´s Parameters
Internal Part Number898-1N4957US
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryDiscrete Semiconductor Products
FamilyDiodes - Zener - Single
ManufacturerMicrosemi Corporation
Series-
PackagingBulk
Part StatusActive
Voltage - Zener (Nom) (Vz)9.1V
Tolerance±5%
Power - Max5W
Impedance (Max) (Zzt)2 Ohm
Current - Reverse Leakage @ Vr25µA @ 6.9V
Voltage - Forward (Vf) (Max) @ If1.5V @ 1A
Operating Temperature-65°C ~ 175°C
Mounting TypeSurface Mount

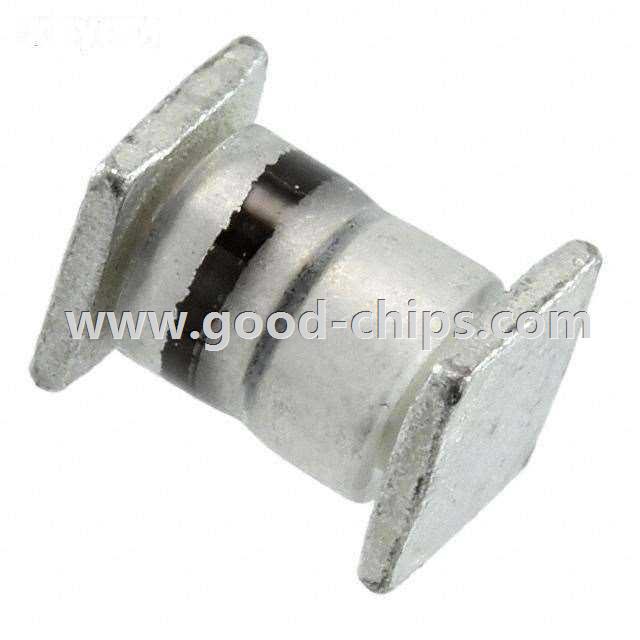

Package / CaseE-MELF
Supplier Device PackageD-5B
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement Part1N4957US
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

1N4957US is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of 1N4957US is new and unused, you can buy 1N4957US Microsemi Corporation with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 1N4957US.
