| Manufacturer Part Number: | 198 |
|---|---|
| Manufacturer: | Adafruit Industries LLC |
| Product Category: | Display Modules - LCD, OLED Character and Numeric |
| Available Quantity: | 9080 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LCD Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel, 8-Bit 97.00mm x 60.00mm x 14.00mm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 198 Datasheet |
| Internal Part Number | 898-198 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |

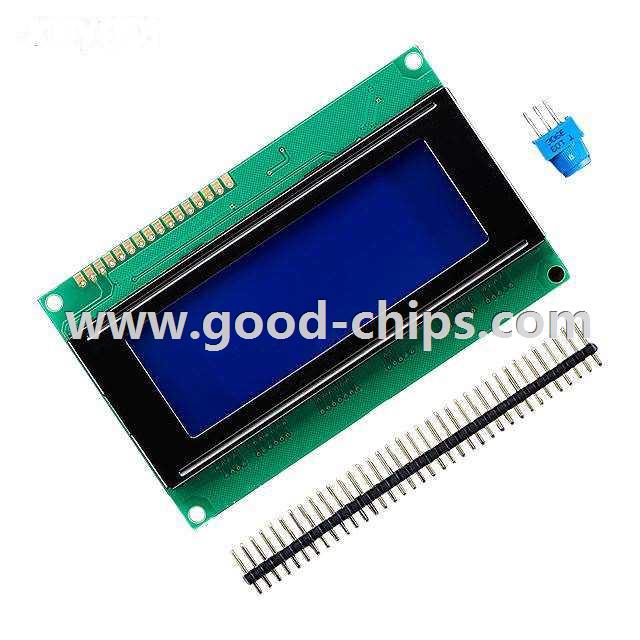

| Online Catalog | Standard LCD 20x4 Plus Extras White on Blue Board | |
| Category | Optoelectronics | |
| Family | Display Modules - LCD, OLED Character and Numeric | |
| Manufacturer | Adafruit Industries LLC | |
| Series | - | |
| Part Status | Active | |
| Number of Characters | 80 | |
| Display Format | 20 x 4 | |
| Character Format | 5 x 8 Dots | |
| Display Type | STN - Super-Twisted Nematic | |
| Display Mode | Transflective | |
| Character Size | 4.75mm H x 2.95mm W | |
| Outline L x W x H | 97.00mm x 60.00mm x 14.00mm | |
| Viewing Area | 76.00mm L x 26.00mm W | |
| Backlight | LED - Yellow/Green | |
| Voltage - Supply | 5V | |
| Dot Size | 0.55mm W x 0.55mm H | |
| Interface | Parallel, 8-Bit | |
| Operating Temperature | -10°C ~ 60°C | |
| Text Color | - | |
| Background Color | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 198 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
198 is in stock for immediate shipping now. We are the distributor of Adafruit Industries LLC all series components. The condition of 198 is new and unused, you can buy 198 Adafruit Industries LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 198.
