| Manufacturer Part Number: | 19628101420 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Heavy Duty Connectors - Housings, Hoods, Bases |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |

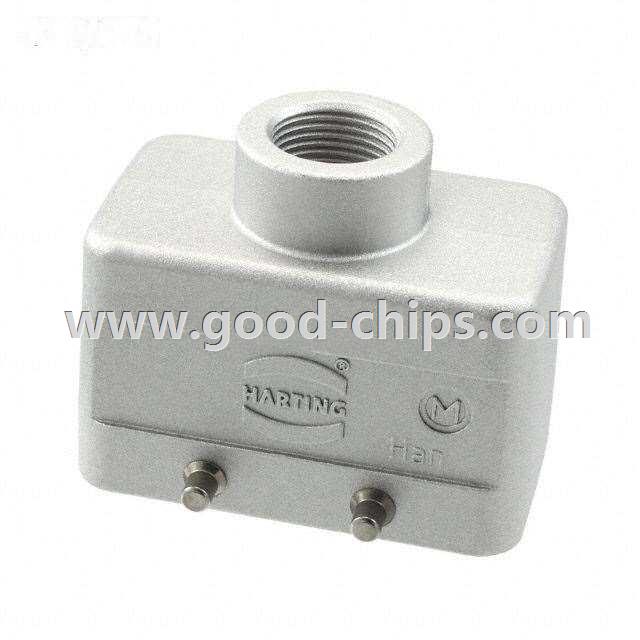

| Description: | CONN HOOD TOP ENTRY SZ10B M20 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 19628101420 Datasheet |
| Internal Part Number | 898-19628101420 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 19628101420.jt 19628101420.stp | |
| Online Catalog | Han® EMC Series | |
| Category | Connectors, Interconnects | |
| Family | Heavy Duty Connectors - Housings, Hoods, Bases | |
| Manufacturer | Harting | |
| Series | Han® EMC | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Hood | |
| Style | Top Entry | |
| Size | 10B | |
| Lock Location | Locking Clip (2) on Base Bottom | |
| Thread Size | M20 | |
| Size / Dimension | 2.858" L x 1.693" W x 1.772" H (72.60mm x 43.00mm x 45.00mm) | |
| Housing Color | - | |
| Features | - | |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | |
| Housing Material | Aluminum, Die Cast | |
| Housing Finish | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 19628101420 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
19628101420 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 19628101420 is new and unused, you can buy 19628101420 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 19628101420.
