| Manufacturer Part Number: | 19410100301 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Heavy Duty Connectors - Housings, Hoods, Bases |
| Available Quantity: | 9017 Pieces |
| Unit Price: | Quote by Email |

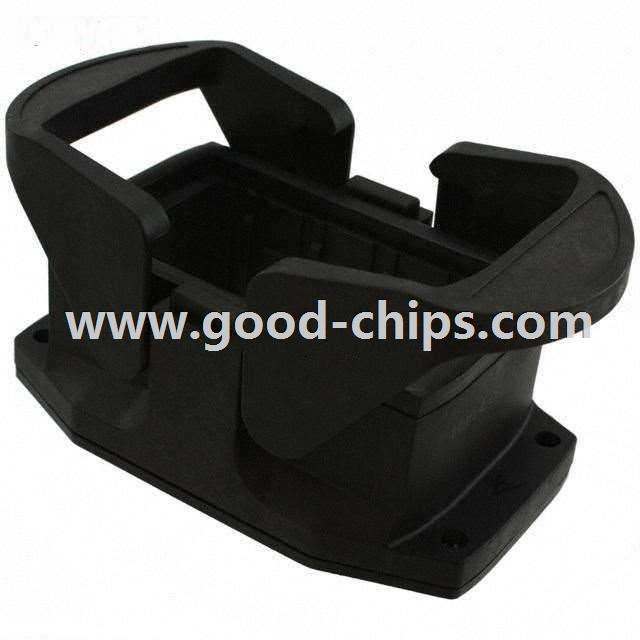

| Description: | CONN BASE BOTTOM ENTRY SZ10B |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 19410100301 Datasheet |
| Internal Part Number | 898-19410100301 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Han-Modular® Connector System | |
| 3D Model | 19410100301.jt 19410100301.stp | |
| Online Catalog | Han-Eco® Series | |
| Category | Connectors, Interconnects | |
| Family | Heavy Duty Connectors - Housings, Hoods, Bases | |
| Manufacturer | Harting | |
| Series | Han-Eco® | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Base - Panel Mount | |
| Style | Bottom Entry | |
| Size | 10B | |
| Lock Location | Locking Clip (2) on Base Bottom | |
| Thread Size | - | |
| Size / Dimension | 3.661" L x 2.244" W x 1.346" H (93.00mm x 57.00mm x 34.20mm) | |
| Housing Color | Black | |
| Features | - | |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | |
| Housing Finish | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 19410100301 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
19410100301 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 19410100301 is new and unused, you can buy 19410100301 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 19410100301.
