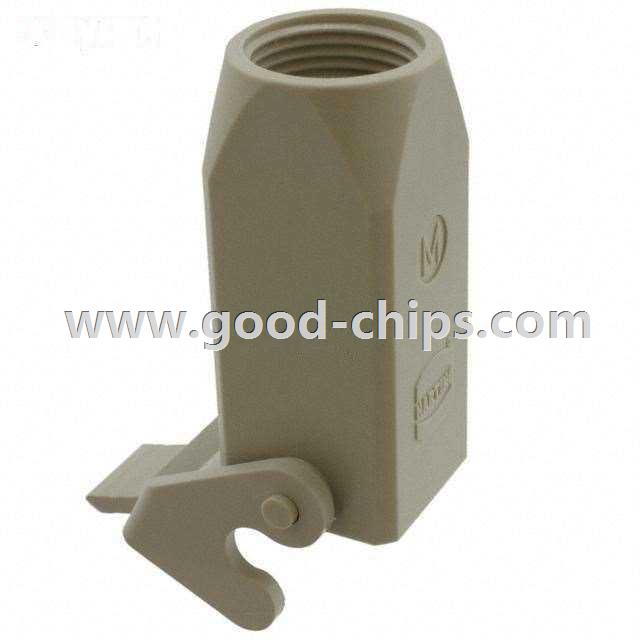

| Manufacturer Part Number: | 19200030720 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Heavy Duty Connectors - Housings, Hoods, Bases |
| Available Quantity: | 9023 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN HOOD CPLNG BOTTOM SZ3A M20 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 19200030720 Datasheet |
| Internal Part Number | 898-19200030720 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 19200030720.jt 19200030720.stp | |
| Online Catalog | Han® A Series | |
| Category | Connectors, Interconnects | |
| Family | Heavy Duty Connectors - Housings, Hoods, Bases | |
| Manufacturer | Harting | |
| Series | Han® A | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Hood - Coupling | |
| Style | Bottom Entry | |
| Size | 3A | |
| Lock Location | Locking Clip (1) on Hood Top | |
| Thread Size | M20 | |
| Size / Dimension | 0.945" L x 0.945" W x 2.244" H (24.00mm x 24.00mm x 57.00mm) | |
| Housing Color | Gray | |
| Features | Cable to Cable | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Housing Material | Polycarbonate (PC) | |
| Housing Finish | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 19200030720 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
19200030720 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 19200030720 is new and unused, you can buy 19200030720 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 19200030720.
