| Manufacturer Part Number: | 19198-0016 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Terminals - Spade Connectors |
| Available Quantity: | 9461 Pieces |
| Unit Price: | Quote by Email |

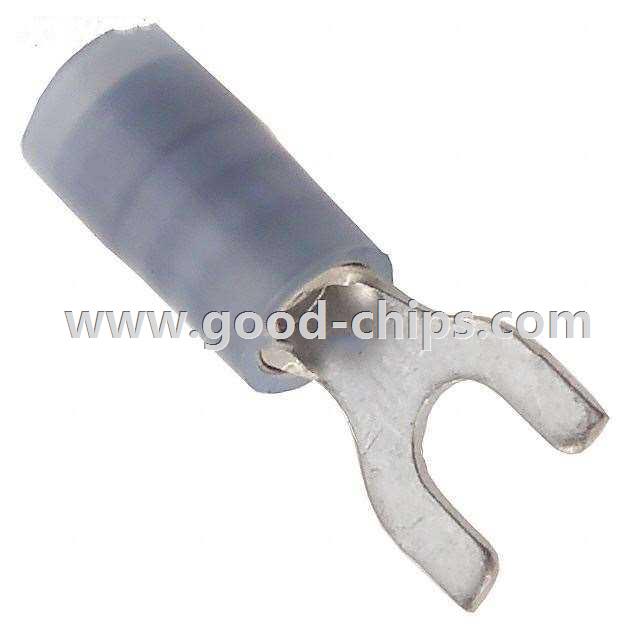

| Description: | Blue 6 Stud Spade Terminal Connector Crimp 14-16 AWG |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 19198-0016 Datasheet |
| Internal Part Number | 898-19198-0016 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Molex RF Connectors | Digi-Key Daily | |
| RoHS Information | 19198-0016 Cert of Compliance | |
| Online Catalog | Avikrimp® Series | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Spade Connectors | |
| Manufacturer | Molex Connector Corporation | |
| Series | Avikrimp™ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Terminal Type | Standard | |
| Stud/Tab Size | 6 Stud | |
| Width - Outer Edges | 0.295" (7.49mm) | |
| Length - Overall | 0.804" (20.42mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 14-16 AWG | |
| Insulation | Insulated | |
| Features | - | |
| Color | Blue | |
| Contact Finish | Electro-Tin | |
| Contact Material | Copper | |
| Insulation Diameter | 0.170" (4.32mm) | |
| Material - Insulation | Polyamide (PA), Nylon | |
| Length - Ring Center to Termination | 0.211" (5.36mm) | |
| Length - Termination | 0.415" (10.54mm) | |
| Tongue Inside Opening | 0.146" (3.71mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 19198-0016 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
19198-0016 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 19198-0016 is new and unused, you can buy 19198-0016 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 19198-0016.
