Manufacturer Part Number: | 19193-0309 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Terminals - Ring Connectors |
Available Quantity: | 9034 Pieces |
Unit Price: | Quote by Email |

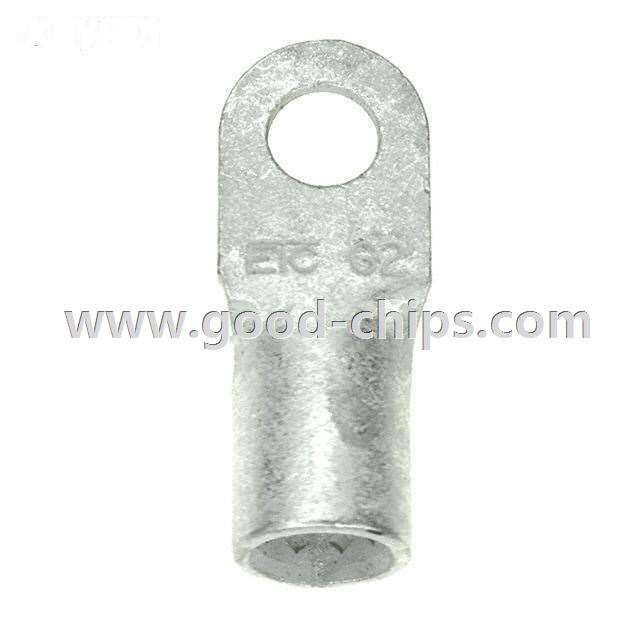

Description: | Ring Terminal Connector 5/16 Stud Flat Sided 2 AWG Crimp |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 19193-0309 Datasheet |
Internal Part Number | 898-19193-0309 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Molex RF Connectors | Digi-Key Daily | |
RoHS Information | 19193-0309 Cert of Compliance | |
Featured Product | Solderless Terminals Interactive Guide | |
3D Model | 19193-0309 .pdf | |
Online Catalog | Versakrimp™ | |
Category | Connectors, Interconnects | |
Family | Terminals - Ring Connectors | |
Manufacturer | Molex Connector Corporation | |
Series | VersaKrimp™ | |
Packaging | Bulk | |
Part Status | Active | |
Terminal Type | Flat Sided | |
Stud/Tab Size | 5/16 Stud | |
Thickness | 0.075" (1.91mm) | |
Width - Outer Edges | 0.645" (16.38mm) | |
Length - Overall | 1.583" (40.21mm) | |
Mounting Type | Free Hanging (In-Line) | |
Termination | Crimp | |
Wire Gauge | 2 AWG | |
Insulation | Non-Insulated | |
Features | Brazed Seam | |
Color | - | |
Contact Material | Copper | |
Contact Finish | Tin | |
Insulation Diameter | - | |
Material - Insulation | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 19193-0309 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
19193-0309 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 19193-0309 is new and unused, you can buy 19193-0309 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 19193-0309.
