19164-0073

19164-0073
Manufacturer Part Number:19164-0073
Manufacturer:
Product Category:Terminals - Spade Connectors
Available Quantity:9010 Pieces
Unit Price:Quote by Email

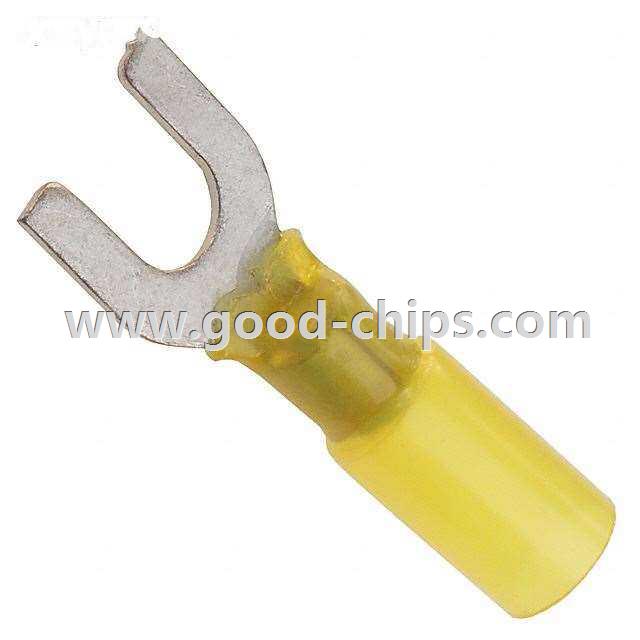

Description:Yellow 1/4 Stud Spade Terminal Connector Crimp 10-12 AWG
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 19164-0073 Datasheet
19164-0073´s Parameters
Internal Part Number898-19164-0073
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilyTerminals - Spade Connectors
ManufacturerMolex Connector Corporation
SeriesPerma-Seal™
PackagingBulk
Part StatusObsolete
Terminal TypeStandard
Stud/Tab Size1/4 Stud
Width - Outer Edges0.540" (13.72mm)
Length - Overall1.570" (39.89mm)
Mounting TypeFree Hanging (In-Line)
TerminationCrimp
Wire Gauge10-12 AWG
InsulationInsulated with Heat Shrink
Features-
ColorYellow
Contact FinishElectro-Tin
Contact MaterialCopper
Insulation Diameter0.300" (7.62mm)
Material - InsulationNiAc™
Length - Ring Center to Termination-
Length - Termination-
Tongue Inside Opening0.265" (6.73mm)
Standard Package 100
Weight0.001 KG
ApplicationEmail for details
Replacement Part19164-0073
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

19164-0073 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 19164-0073 is new and unused, you can buy 19164-0073 Molex, LLC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 19164-0073.
