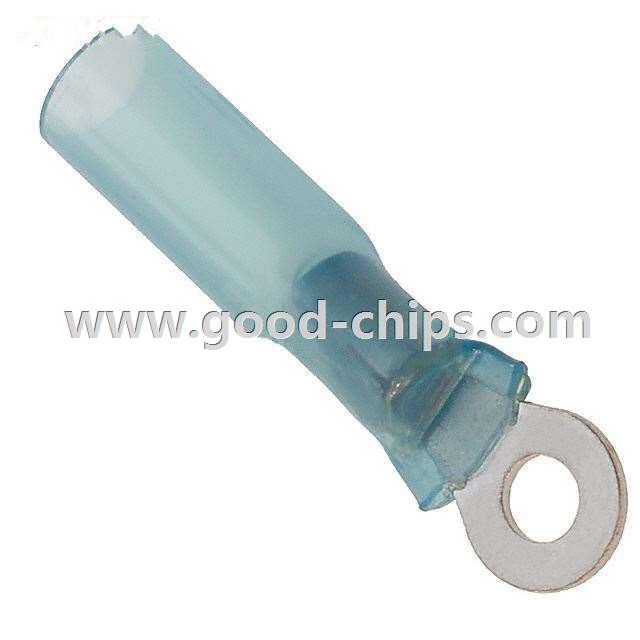

19164-0032

19164-0032
Manufacturer Part Number:19164-0032
Manufacturer:
Product Category:Terminals - Ring Connectors
Available Quantity:11421 Pieces
Unit Price:Quote by Email
Description:Ring Terminal Connector 6 Stud Circular 14-16 AWG Crimp
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 19164-0032 Datasheet
19164-0032´s Parameters
Internal Part Number898-19164-0032
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesPerma-Seal Terminals and Splices
Video FileMolex RF Connectors | Digi-Key Daily
RoHS Information19164-0032 Cert of Compliance
Featured ProductPerma-Seal™ Terminals
Online Catalog Perma-Seal™ Series
CategoryConnectors, Interconnects
FamilyTerminals - Ring Connectors
ManufacturerMolex Connector Corporation
SeriesPerma-Seal™
PackagingBulk
Part StatusActive
Terminal TypeCircular
Stud/Tab Size6 Stud
Thickness0.031" (0.79mm)
Width - Outer Edges0.320" (8.13mm)
Length - Overall1.450" (36.83mm)
Mounting TypeFree Hanging (In-Line)
TerminationCrimp
Wire Gauge14-16 AWG
InsulationInsulated with Heat Shrink
FeaturesSerrated Termination
ColorBlue
Contact MaterialCopper Alloy
Contact FinishTin
Insulation Diameter0.235" (5.97mm)
Material - InsulationNiAc™
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement Part19164-0032
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

19164-0032 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 19164-0032 is new and unused, you can buy 19164-0032 Molex, LLC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 19164-0032.
