| Manufacturer Part Number: | 19164-0030 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Terminals - Spade Connectors |
| Available Quantity: | 9230 Pieces |
| Unit Price: | Quote by Email |

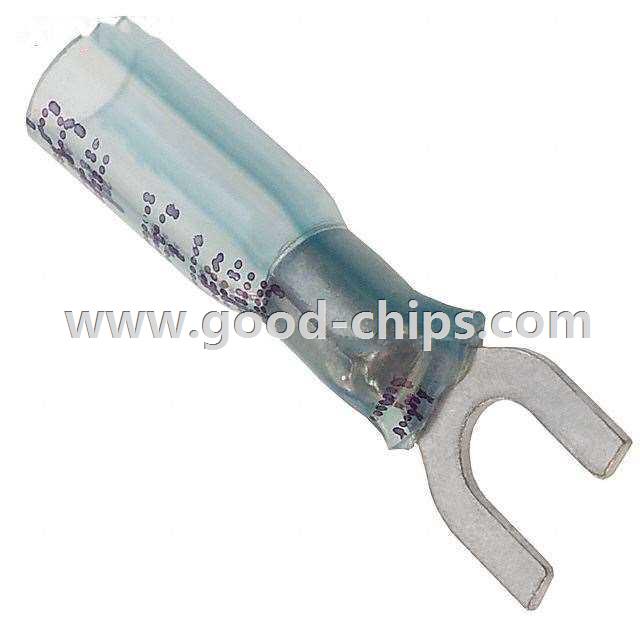

| Description: | Blue 10 Stud Spade Terminal Connector Crimp 14-16 AWG |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 19164-0030 Datasheet |
| Internal Part Number | 898-19164-0030 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Perma-Seal Terminals and Splices | |
| Video File | Molex RF Connectors | Digi-Key Daily | |
| RoHS Information | 19164-0030 Cert of Compliance | |
| Featured Product | Perma-Seal™ Terminals | |
| Online Catalog | Perma-Seal™ Series | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Spade Connectors | |
| Manufacturer | Molex Connector Corporation | |
| Series | Perma-Seal™ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Terminal Type | Standard | |
| Stud/Tab Size | 10 Stud | |
| Width - Outer Edges | 0.400" (10.16mm) | |
| Length - Overall | 1.420" (36.07mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 14-16 AWG | |
| Insulation | Insulated with Heat Shrink | |
| Features | - | |
| Color | Blue | |
| Contact Finish | Electro-Tin | |
| Contact Material | Copper | |
| Insulation Diameter | 0.235" (5.97mm) | |
| Material - Insulation | NiAc™ | |
| Length - Ring Center to Termination | - | |
| Length - Termination | - | |
| Tongue Inside Opening | 0.198" (5.03mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 19164-0030 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
19164-0030 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 19164-0030 is new and unused, you can buy 19164-0030 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 19164-0030.
