Manufacturer Part Number: | 19144-0026 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Terminals - Spade Connectors |
Available Quantity: | 9128 Pieces |
Unit Price: | Quote by Email |

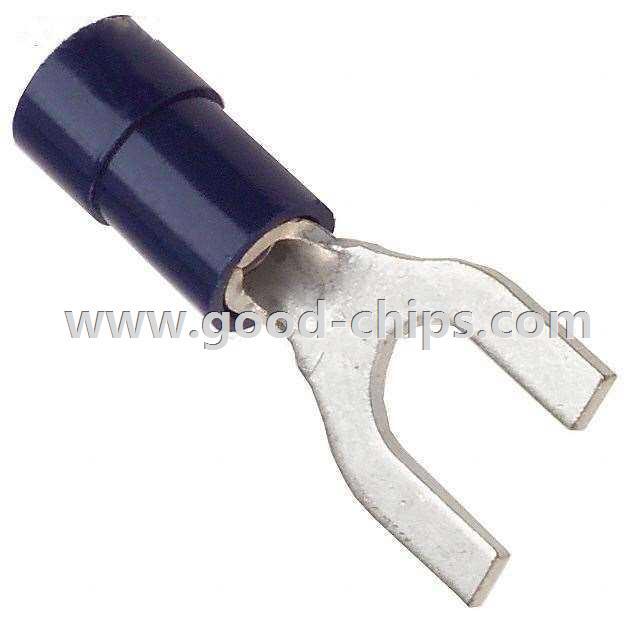

Description: | Blue 10 Stud Spade Terminal Connector Crimp 14-16 AWG |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 19144-0026 Datasheet |
Internal Part Number | 898-19144-0026 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Molex RF Connectors | Digi-Key Daily | |
RoHS Information | 19144-0026 Cert of Compliance | |
Online Catalog | Insulkrimp® Series | |
Category | Connectors, Interconnects | |
Family | Terminals - Spade Connectors | |
Manufacturer | Molex Connector Corporation | |
Series | InsulKrimp™ | |
Packaging | Bulk | |
Part Status | Active | |
Terminal Type | Standard | |
Stud/Tab Size | 10 Stud | |
Width - Outer Edges | 0.388" (9.86mm) | |
Length - Overall | 0.912" (23.16mm) | |
Mounting Type | Free Hanging (In-Line) | |
Termination | Crimp | |
Wire Gauge | 14-16 AWG | |
Insulation | Insulated | |
Features | - | |
Color | Blue | |
Contact Finish | Electro-Tin | |
Contact Material | Copper | |
Insulation Diameter | 0.175" (4.45mm) | |
Material - Insulation | Poly-Vinyl Chloride (PVC) | |
Length - Ring Center to Termination | 0.269" (6.83mm) | |
Length - Termination | 0.400" (10.16mm) | |
Tongue Inside Opening | 0.198" (5.03mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 19144-0026 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
19144-0026 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 19144-0026 is new and unused, you can buy 19144-0026 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 19144-0026.
