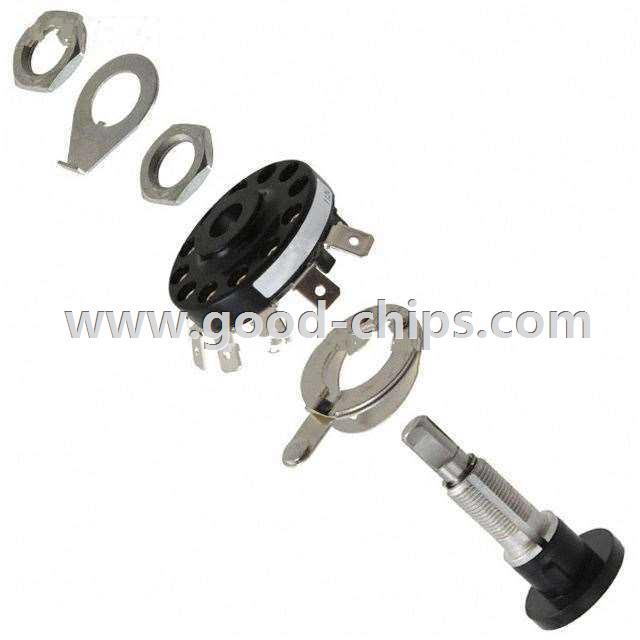

| Manufacturer Part Number: | 19101-06UL |
|---|---|
| Manufacturer: | Grayhill Inc. |
| Product Category: | Rotary Switches |
| Available Quantity: | 9039 Pieces |
| Unit Price: | Quote by Email |
| Description: | Rotary Switch 6 Position SP6T 15A (AC), 1A (DC) 120VAC Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 19101-06UL Datasheet |
| Internal Part Number | 898-19101-06UL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Rotary Switches & Mechanical Encoders | |
| RoHS Information | Compliance Status by Product Type | |
| PCN Other | Multiple Devices Plating Material 30/Jan/2015 | |
| Online Catalog | 19 Series | |
| Category | Switches | |
| Family | Rotary Switches | |
| Manufacturer | Grayhill Inc. | |
| Series | 19 | |
| Part Status | Active | |
| Number of Positions | 6 | |
| Index Stops | Fixed | |
| Number of Decks | 1 | |
| Number of Poles per Deck | 1 | |
| Circuit per Deck | SP6T | |
| Contact Timing | Non-Shorting (BBM) | |
| Current Rating | 15A (AC), 1A (DC) | |
| Voltage Rating - AC | 120V | |
| Voltage Rating - DC | 120V | |
| Actuator Type | Flatted (6.35mm Dia) | |
| Actuator Length | 12.70mm | |
| Angle of Throw | 30° | |
| Contact Material | Silver Alloy | |
| Contact Finish | - | |
| Mounting Type | Panel Mount | |
| Termination Style | Quick Connect - 0.250" (6.3mm) | |
| Features | - | |
| Depth Behind Panel | 24.13mm | |
| Panel Cutout Dimensions | - | |
| Operating Force, Torque | 12 ~ 36 in-oz | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 19101-06UL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
19101-06UL is in stock for immediate shipping now. We are the distributor of Grayhill Inc. all series components. The condition of 19101-06UL is new and unused, you can buy 19101-06UL Grayhill Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 19101-06UL.
