| Manufacturer Part Number: | 19070-0076 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Terminals - Ring Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

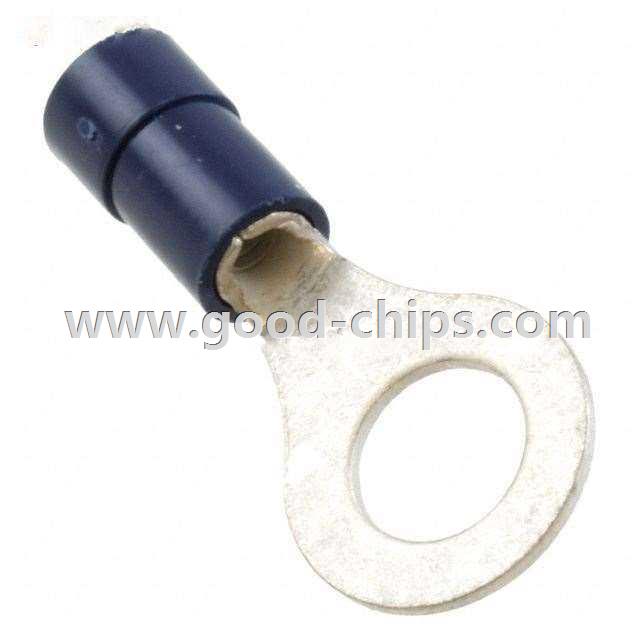

| Description: | Ring Terminal Connector 1/4 Stud Circular 14-16 AWG Crimp |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 19070-0076 Datasheet |
| Internal Part Number | 898-19070-0076 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Molex RF Connectors | Digi-Key Daily | |
| RoHS Information | 19070-0076 Cert of Compliance | |
| Featured Product | Solderless Terminals Interactive Guide | |
| Online Catalog | InsulKrimp™ Series | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Ring Connectors | |
| Manufacturer | Molex Connector Corporation | |
| Series | InsulKrimp™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Terminal Type | Circular | |
| Stud/Tab Size | 1/4 Stud | |
| Thickness | - | |
| Width - Outer Edges | 0.477" (12.11mm) | |
| Length - Overall | 1.062" (26.97mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 14-16 AWG | |
| Insulation | Insulated | |
| Features | Serrated Termination | |
| Color | Blue | |
| Contact Material | Copper | |
| Contact Finish | Tin | |
| Insulation Diameter | 0.175" (4.45mm) | |
| Material - Insulation | Poly-Vinyl Chloride (PVC) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 19070-0076 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
19070-0076 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 19070-0076 is new and unused, you can buy 19070-0076 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 19070-0076.
