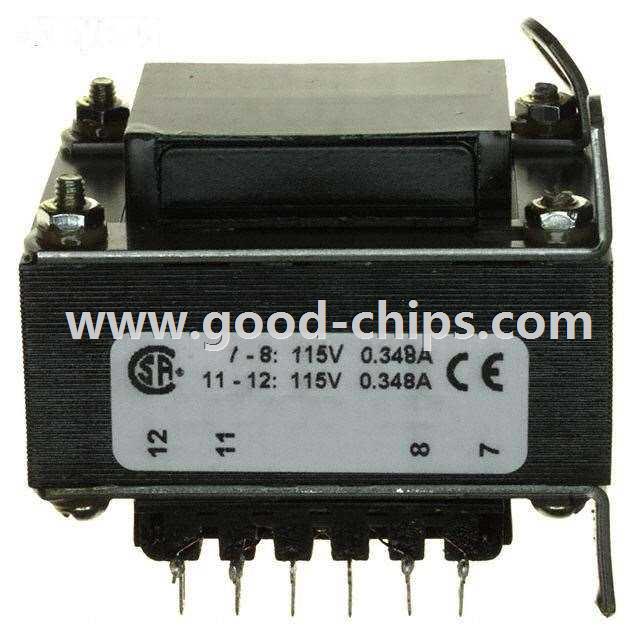

| Manufacturer Part Number: | 185E230 |
|---|---|
| Manufacturer: | Hammond Manufacturing |
| Product Category: | Power Transformers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | XFRMR LAMINATED 80VA CHAS MOUNT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 185E230 Datasheet |
| Internal Part Number | 898-185E230 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Transformers | |
| Family | Power Transformers | |
| Manufacturer | Hammond Manufacturing | |
| Series | 185 | |
| Part Status | Active | |
| Type | Laminated Core | |
| Voltage - Primary | 115V, 230V | |
| Voltage - Secondary (Full Load) | Parallel 115V, Series 230V | |
| Current - Output (Max) | Parallel 700mA, Series 350mA | |
| Primary Winding(s) | Dual | |
| Secondary Winding(s) | Dual | |
| Center Tap | No | |
| Power - Max | 80 VA | |
| Mounting Type | Chassis Mount | |
| Termination Style | Solder, Quick Connect | |
| Size / Dimension | 63.50mm L x 66.29mm W | |
| Height - Seated (Max) | 76.20mm | |
| Voltage - Isolation | 4000Vrms | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 185E230 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
185E230 is in stock for immediate shipping now. We are the distributor of Hammond Manufacturing all series components. The condition of 185E230 is new and unused, you can buy 185E230 Hammond Manufacturing with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 185E230.
