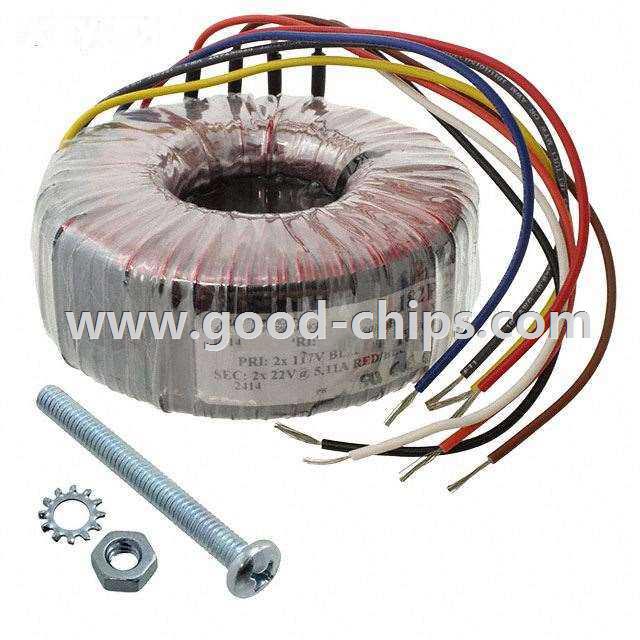

| Manufacturer Part Number: | 182P22 |
|---|---|
| Manufacturer: | Hammond Manufacturing |
| Product Category: | Power Transformers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | XFRMR TOROIDAL 225VA CHAS MOUNT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 182P22 Datasheet |
| Internal Part Number | 898-182P22 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Transformers | |
| Family | Power Transformers | |
| Manufacturer | Hammond Manufacturing | |
| Series | 182 | |
| Part Status | Active | |
| Type | Toroidal | |
| Voltage - Primary | 117V, 234V | |
| Voltage - Secondary (Full Load) | Parallel 22V, Series 44V | |
| Current - Output (Max) | Parallel 10.22A, Series 5.11A | |
| Primary Winding(s) | Dual | |
| Secondary Winding(s) | Dual | |
| Center Tap | No | |
| Power - Max | 225 VA | |
| Mounting Type | Chassis Mount | |
| Termination Style | Wire Leads | |
| Size / Dimension | - | |
| Height - Seated (Max) | 48.26mm | |
| Voltage - Isolation | 4000Vrms | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 182P22 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
182P22 is in stock for immediate shipping now. We are the distributor of Hammond Manufacturing all series components. The condition of 182P22 is new and unused, you can buy 182P22 Hammond Manufacturing with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 182P22.
