| Manufacturer Part Number: | 17EHD-026-P-AA-0-00 |
|---|---|
| Manufacturer: | Amphenol Commercial Products |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 10162 Pieces |
| Unit Price: | Quote by Email |

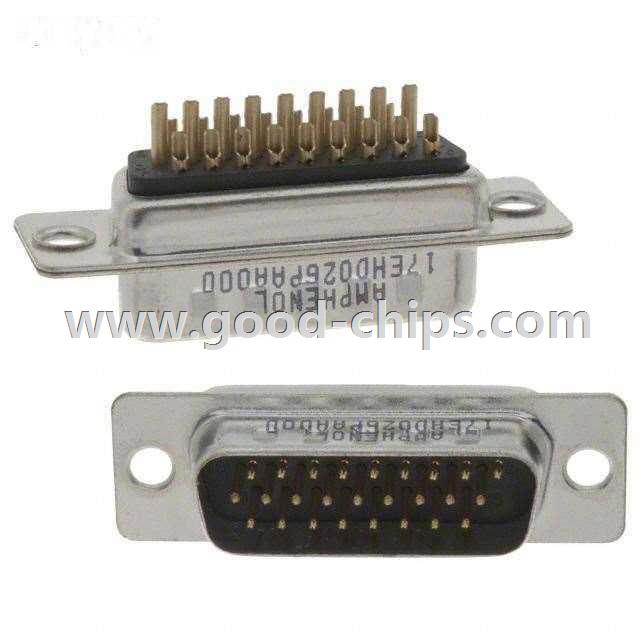

| Description: | 26 Position D-Sub, High Density Plug, Male Pins Connector, Free Hanging (In-Line) Solder Cup |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 17EHD-026-P-AA-0-00 Datasheet |
| Internal Part Number | 898-17EHD-026-P-AA-0-00 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Communication Solutions Industrial Solutions | |
| 3D Model | 17EHD-026-P-xx-0-00.igs 17EHD-026-P-xx-0-00.stp | |
| Online Catalog | 17 EHD and 17EBH Series | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | Amphenol Commercial Products | |
| Series | 17EHD | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | D-Sub, High Density | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 26 | |
| Number of Rows | 3 | |
| Shell Size, Connector Layout | 2 (DA, A) High Density | |
| Contact Type | Signal | |
| Mounting Type | Free Hanging (In-Line) | |
| Flange Feature | Housing/Shell (Unthreaded) | |
| Termination | Solder Cup | |
| Features | Grounding Indents | |
| Shell Material, Finish | Steel, Tin Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 105°C | |
| Voltage Rating | 125V | |
| Current Rating | 3A | |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | |
| Color | Black | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 17EHD-026-P-AA-0-00 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
17EHD-026-P-AA-0-00 is in stock for immediate shipping now. We are the distributor of Amphenol Commercial Products all series components. The condition of 17EHD-026-P-AA-0-00 is new and unused, you can buy 17EHD-026-P-AA-0-00 Amphenol Commercial Products with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 17EHD-026-P-AA-0-00.
