Manufacturer Part Number: | 17EBH-026-P-AM-0-10 |
---|---|
Manufacturer: | Amphenol Commercial Products |
Product Category: | D-Sub Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

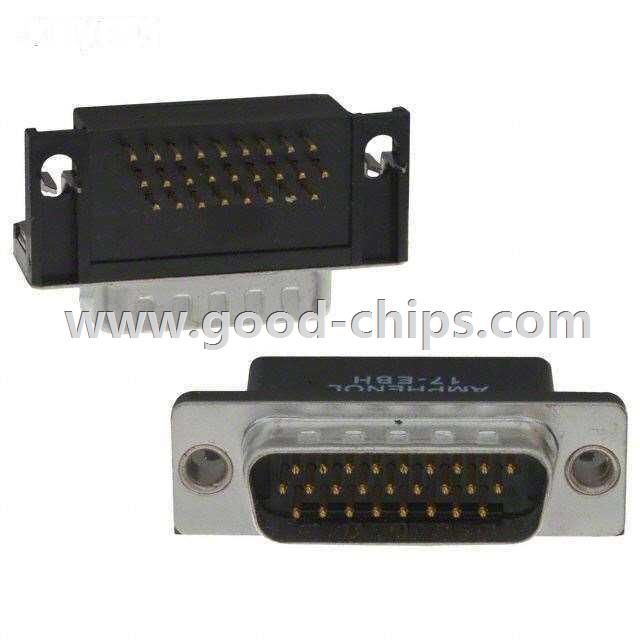

Description: | 26 Position D-Sub, High Density Plug, Male Pins Connector, Through Hole, Right Angle Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 17EBH-026-P-AM-0-10 Datasheet |
Internal Part Number | 898-17EBH-026-P-AM-0-10 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Communication Solutions Industrial Solutions | |
3D Model | 17EBH-026-P-xx-0-10.igs 17EBH-026-P-xx-0-10.stp | |
Category | Connectors, Interconnects | |
Family | D-Sub Connectors | |
Manufacturer | Amphenol Commercial Products | |
Series | 17EBH | |
Packaging | Tray | |
Part Status | Active | |
Connector Style | D-Sub, High Density | |
Connector Type | Plug, Male Pins | |
Number of Positions | 26 | |
Number of Rows | 3 | |
Shell Size, Connector Layout | 2 (DA, A) High Density | |
Contact Type | Signal | |
Mounting Type | Through Hole, Right Angle | |
Flange Feature | Housing/Shell (Unthreaded) | |
Termination | Solder | |
Features | Board Lock, Grounding Indents | |
Shell Material, Finish | Steel, Tin Plated | |
Contact Finish | Gold | |
Contact Finish Thickness | 30µin (0.76µm) | |
Ingress Protection | - | |
Operating Temperature | -55°C ~ 105°C | |
Voltage Rating | 125V | |
Current Rating | 3A | |
Housing Material | Polyamide (PA), Nylon, Glass Filled | |
Color | Black | |
Standard Package | 70 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 17EBH-026-P-AM-0-10 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
17EBH-026-P-AM-0-10 is in stock for immediate shipping now. We are the distributor of Amphenol Commercial Products all series components. The condition of 17EBH-026-P-AM-0-10 is new and unused, you can buy 17EBH-026-P-AM-0-10 Amphenol Commercial Products with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 17EBH-026-P-AM-0-10.
