1775469-7

1775469-7
Manufacturer Part Number:1775469-7
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:10210 Pieces
Unit Price:Quote by Email

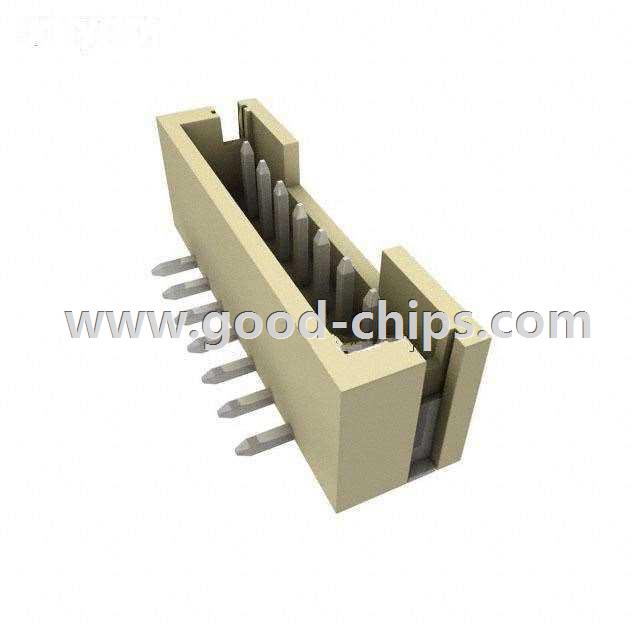

Description:7 Positions Header, Shrouded Connector 0.079" (2.00mm) Surface Mount, Right Angle Tin
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 1775469-7 Datasheet
1775469-7´s Parameters
Internal Part Number898-1775469-7
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
RoHS Information1775469-7 Statement of Compliance
RoHS 2 Statement
3D Model1775469-7.pdf
PCN Design/Specification1775469 Packing Tape Width 28/Oct/2015
Online Catalog HPI Series
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerTE Connectivity AMP Connectors
SeriesHPI
PackagingTape & Reel (TR)
Part StatusActive
Contact TypeMale Pin
Connector TypeHeader, Shrouded
Number of Positions7
Number of Positions LoadedAll
Pitch0.079" (2.00mm)
Number of Rows1
Row Spacing-
Contact Mating Length0.139" (3.53mm)
Mounting TypeSurface Mount, Right Angle
TerminationSolder
Fastening Type-
Features-
Contact FinishTin
Contact Finish Thickness80µin (2.03µm)
ColorNatural
Standard Package 600
Weight0.001 KG
ApplicationEmail for details
Replacement Part1775469-7
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

1775469-7 is in stock for immediate shipping now. We are the distributor of TE Connectivity Potter & Brumfield Relays all series components. The condition of 1775469-7 is new and unused, you can buy 1775469-7 TE Connectivity Potter & Brumfield Relays with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 1775469-7.
