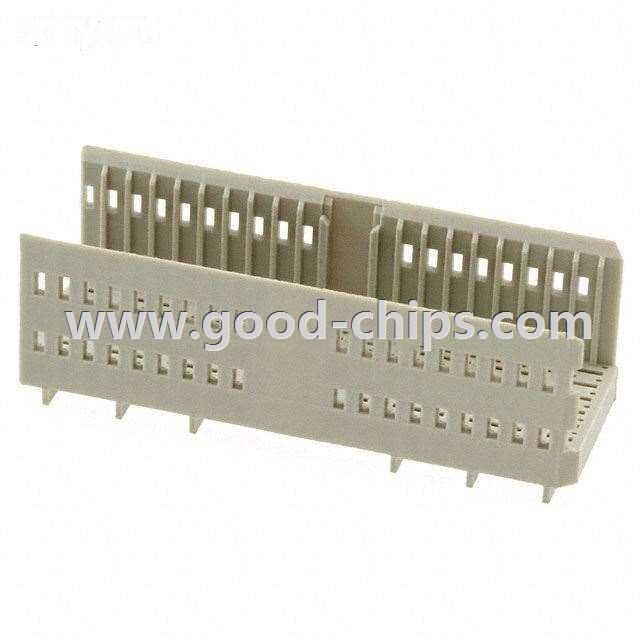

| Manufacturer Part Number: | 17700007003 |
|---|---|
| Manufacturer: | Harting |
| Product Category: | Backplane Connectors - Housings |
| Available Quantity: | 9130 Pieces |
| Unit Price: | Quote by Email |
| Description: | 154 Position Shroud for Male Pins Connector Through Hole AB 22 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 17700007003 Datasheet |
| Internal Part Number | 898-17700007003 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 17700007003.wrl 17700007003.igs 17700007003.stp | |
| Online Catalog | har-bus® HM Series | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Housings | |
| Manufacturer | Harting | |
| Series | har-bus® HM | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Shroud for Male Pins | |
| Connector Style | AB 22 | |
| Number of Positions | 154 | |
| Pitch | 0.079" (2.00mm) | |
| Number of Rows | 7 | |
| Mounting Type | Through Hole | |
| Connector Usage | - | |
| Features | - | |
| Color | - | |
| Note | Contacts Not Provided | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 17700007003 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
17700007003 is in stock for immediate shipping now. We are the distributor of Harting all series components. The condition of 17700007003 is new and unused, you can buy 17700007003 Harting with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 17700007003.
