Manufacturer Part Number: | 172276 |
---|---|
Manufacturer: | Amphenol-RF Division |
Product Category: | Coaxial Connectors (RF) - Adapters |
Available Quantity: | 9067 Pieces |
Unit Price: | Quote by Email |

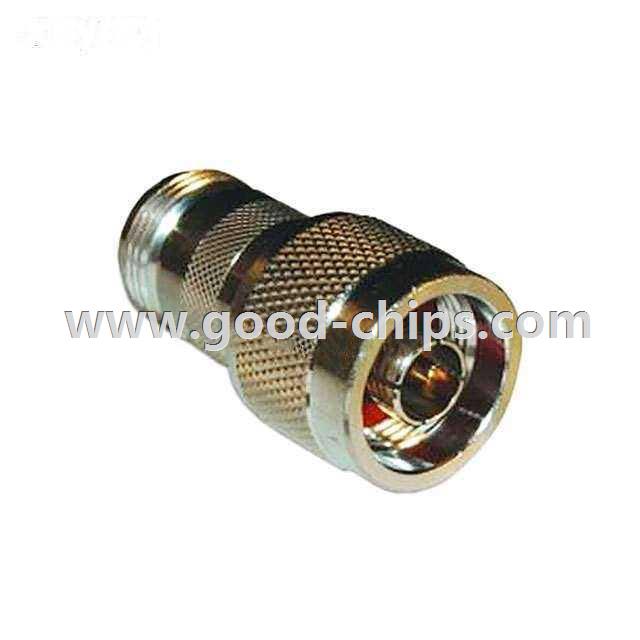

Description: | Adapter Coaxial Connector N Plug, Male Pin To N Jack, Female Socket 50 Ohm |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 172276 Datasheet |
Internal Part Number | 898-172276 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | 172276.stp | |
Online Catalog | Coaxial, RF Adapters - Amphenol-RF Division | |
Category | Connectors, Interconnects | |
Family | Coaxial Connectors (RF) - Adapters | |
Manufacturer | Amphenol-RF Division | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Adapter Type | Plug to Jack | |
Adapter Series | N to N | |
Center Gender | Female to Male | |
Convert From (Adapter End) | N Plug, Male Pin | |
Convert To (Adapter End) | N Jack, Female Socket | |
Conversion Type | Same Series | |
Impedance | 50 Ohm | |
Style | Straight | |
Mounting Type | Free Hanging (In-Line) | |
Frequency - Max | 11GHz | |
Ingress Protection | - | |
Features | - | |
Body Material | Brass | |
Body Finish | White Bronze | |
Dielectric Material | Polytetrafluoroethylene (PTFE) | |
Center Contact Material | Phosphor Bronze | |
Center Contact Plating | Gold | |
Mating Cycles | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 172276 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
172276 is in stock for immediate shipping now. We are the distributor of Amphenol-RF Division all series components. The condition of 172276 is new and unused, you can buy 172276 Amphenol-RF Division with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 172276.
